APPLICATIONS:

• For sewing medium to heavy weight materials such as fabrics, leather, vinyl, synthetics, laminated and coated products.
• Suitable for sewing such products as automotive, marine and aviation upholstery, cargo handling belts, containers, covers, sails, tents, camping trailer covers, awnings, hand bags, etc.

FEATURES:

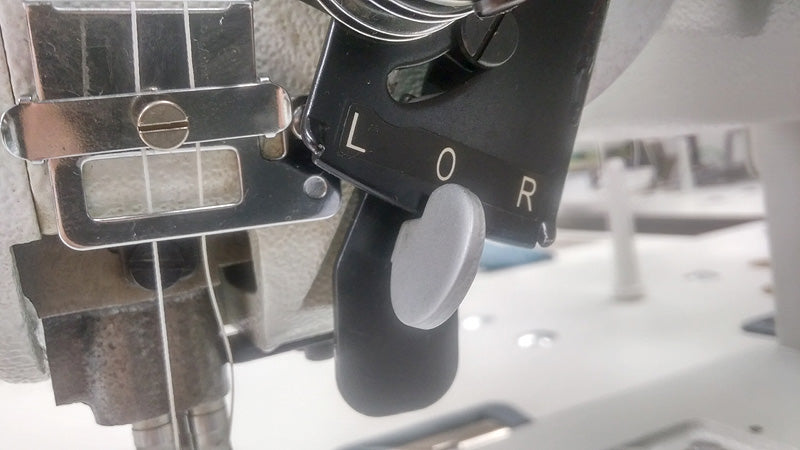

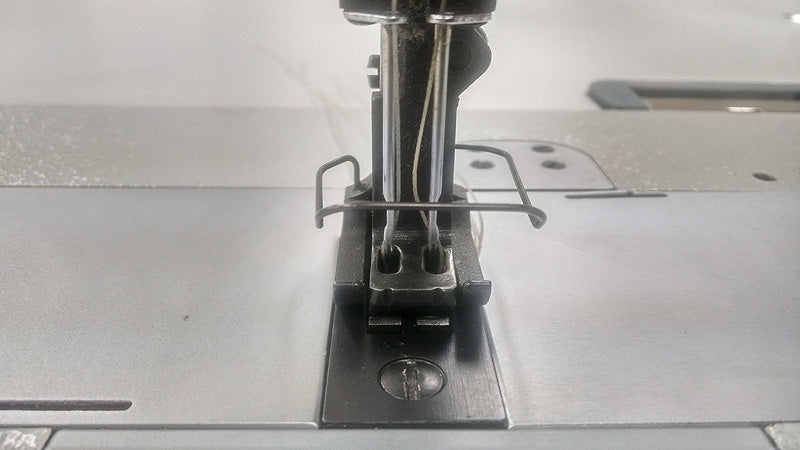

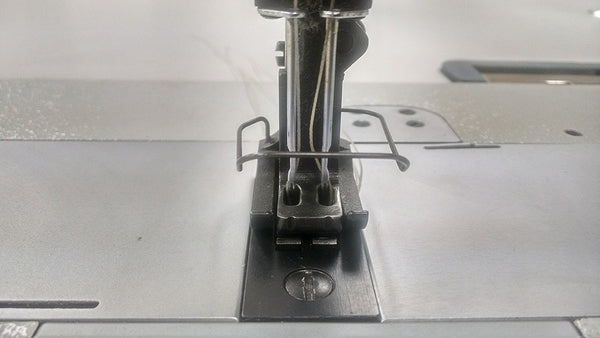

Get around corners like a pro utilizing the SPLIT NEEDLE BAR mechanism on this machine. Engage or Disengage the left or right needle as needed to sew the perfect corner on a variety of medium to heavy weight materials.

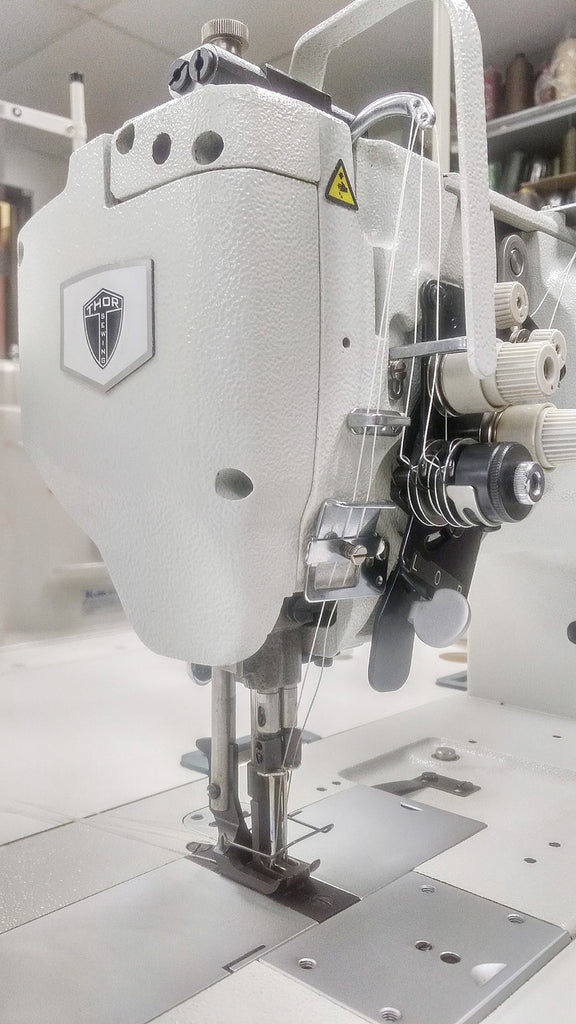

This double needle machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials.

The high 16mm presser foot lift enables easy material handling for heavy sewing.

The 1565's maximum stitch length of 2 ½ stitches per inch allows a broader range of uses, such as awnings and sacks.

The stitch length is easily adjusted by the stitch dial.

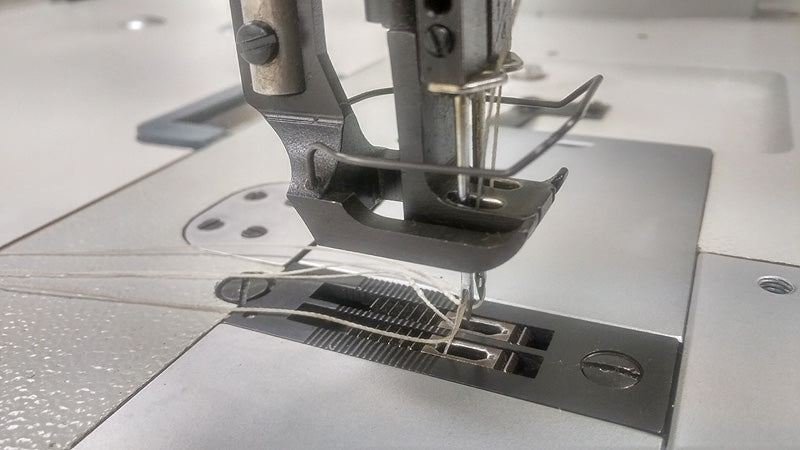

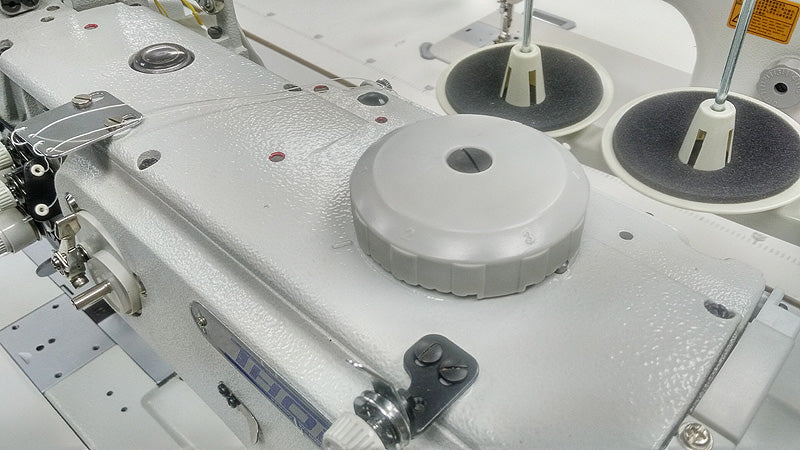

The 1565 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot. This prevents the Walking Foot from snagging on thicker material.

TECHNICAL SPECS:

APPLICATION: For Heavy Materials

MAX SEWING SPEED: 2,500 SPM

NEEDLE GAUGE: 1/4"

MAX STITCH LENGTH: 9mm Forward/Reverse (2 1/2 Stitches Per Inch)

NEEDLE BAR STROKE: 36mm

FOOT LIFT: 16mm by Knee, 9mm by Hand

WALKING FOOT HEIGHT ADJUSTMENT DIAL: Standard

THREAD TAKE UP: Slide Type

HOOK: Horizontal Axis DOUBLE Capacity Hook with U Style Bobbins - Also uses M Bobbins

NEEDLE: 135x17

THREAD: TEX 40 to TEX 210

FEED ACTION: Complete Rectangular Feed

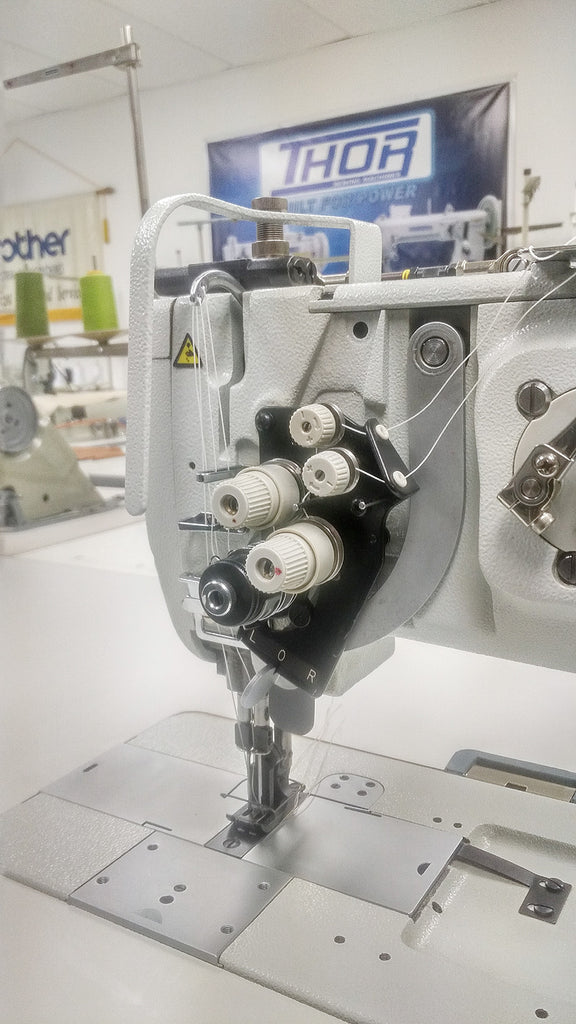

NEEDLE THREAD TENSION: DUAL Tension Method

STITCH LENGTH CHANGE METHOD: By Dial

SAFETY MECHANISM: Standard

LUBRICATION: Centralized Oil Wick Lubrication (Automatic Hook Lubrication)

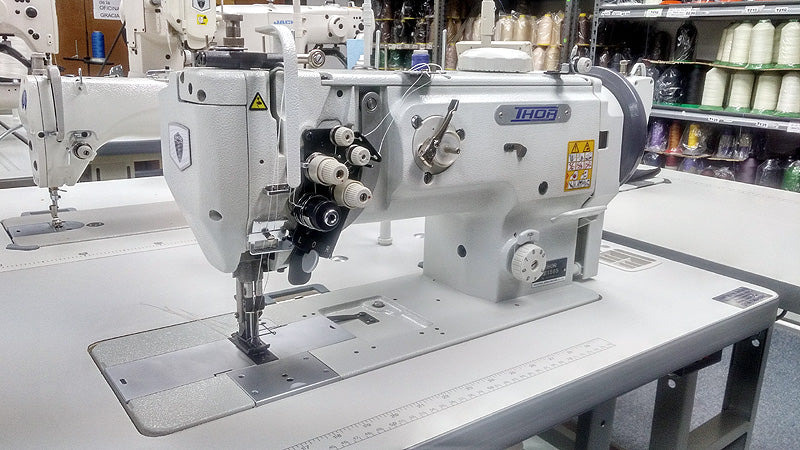

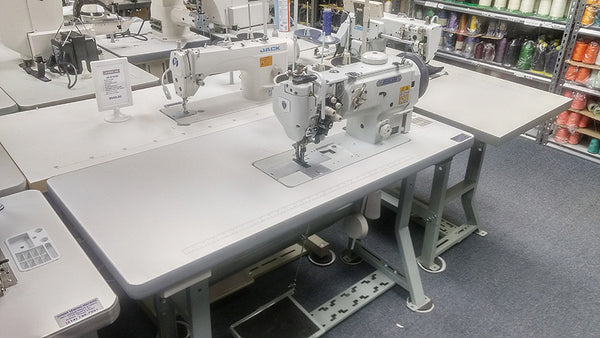

MACHINE SETUP:

This machine ships complete and fully assembled - ready to sew upon arrival.

It includes:

Machine Head

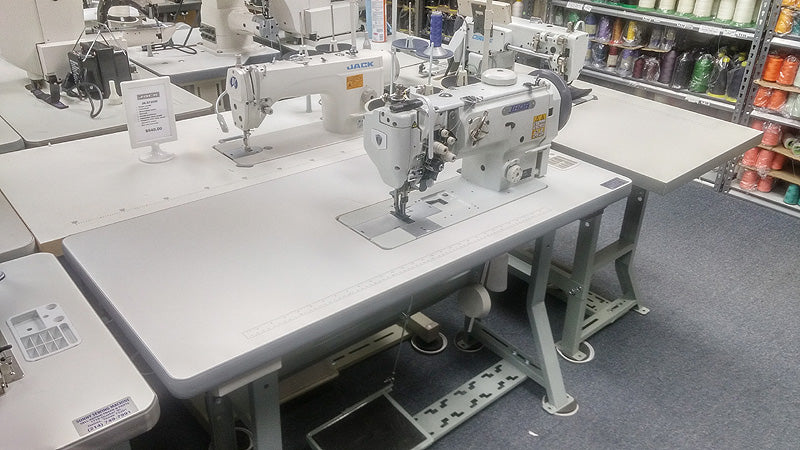

Table Top

Heavy Duty Stand

SERVO Motor

LED Light

Manuals

Extra needles, bobbins, and tools.

MOTOR & VOLTAGE:

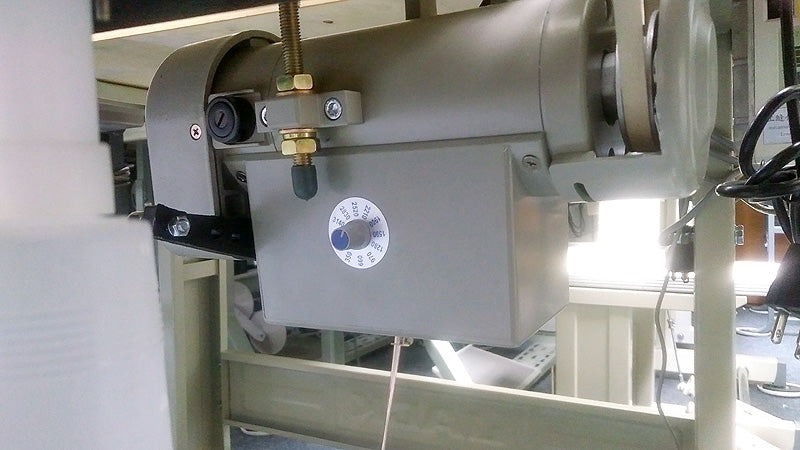

This machine is equipped with a SERVO motor operating on standard 110 Volts power.

WARRANTY:

1 Year Warranty
