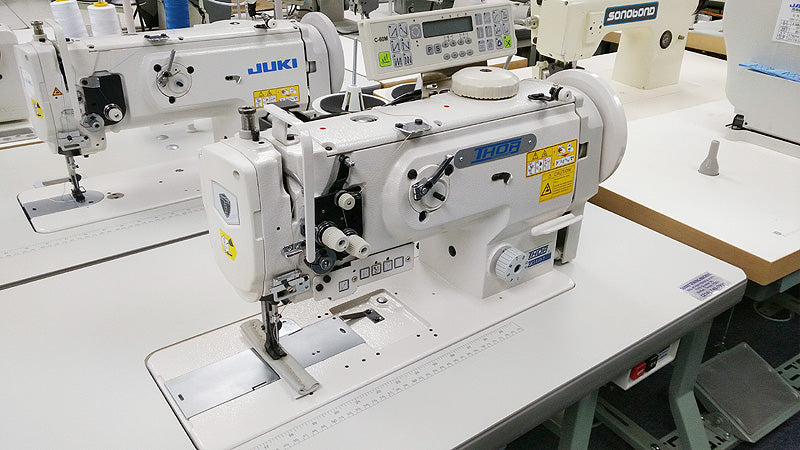

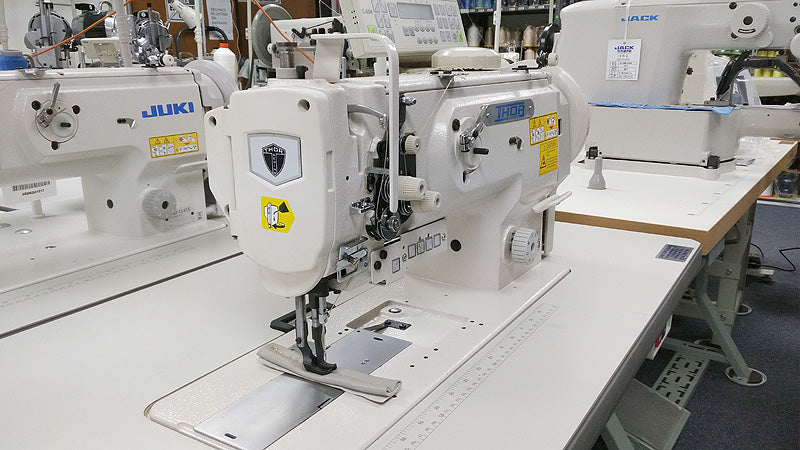

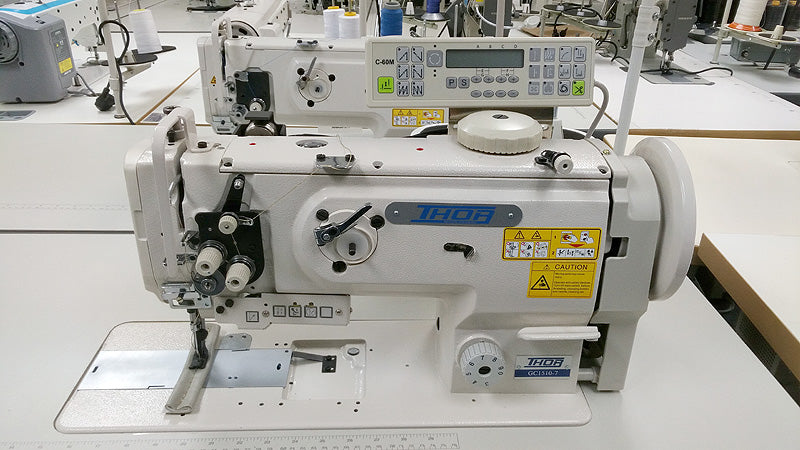

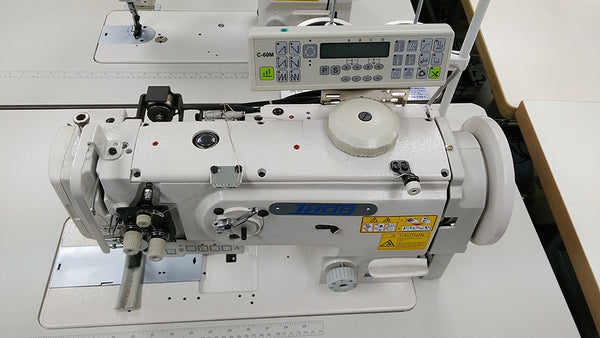

THOR GC1510-7 Automatic Single Needle Walking Foot Sewing Machine

$4,095.00 $3,895.00
Shipping calculated at checkout.
  • AUTO THREAD TRIMMER
  • AUTO BACK TACKS
  • AUTO FOOT LIFT (AIR)
  • TOP-MOUNTED PROGRAMMER / CONTROL PANEL
  • ELECTRONIC MOTOR
  • COMPLETE & FULLY ASSEMBLED



APPLICATIONS:

  • For sewing medium to heavy weight materials such as upholstery fabrics, leather, vinyl, canvas, synthetics, laminated and coated products.

  • This is a high speed compound feed (walking foot) lockstitch sewing machine. Large vertical rotary hook with large bobbin capacity, dual-tension mechanism, rectangular feeding motion prevent the stitch gathering, the alternative vertical movement mechanism prevents irregular and inconsistent stitches. Equipped with the thread trimmer, auto  foot lift and reverse. Suitable for sewing medium and heavy weight  materials, such as automotive and marine upholstery, medical braces, handbags, suitcases, furniture, sporting goods, etc.



FEATURES:

This THOR GC-1510-7 single needle machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread.  This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials.
‚
The high 16mm presser foot lift enables easy material handling for heavy sewing.
ƒ
The 1510s’ maximum stitch length of 2 ½ stitches per inch allows a broader range of uses, such as awnings and sacks.

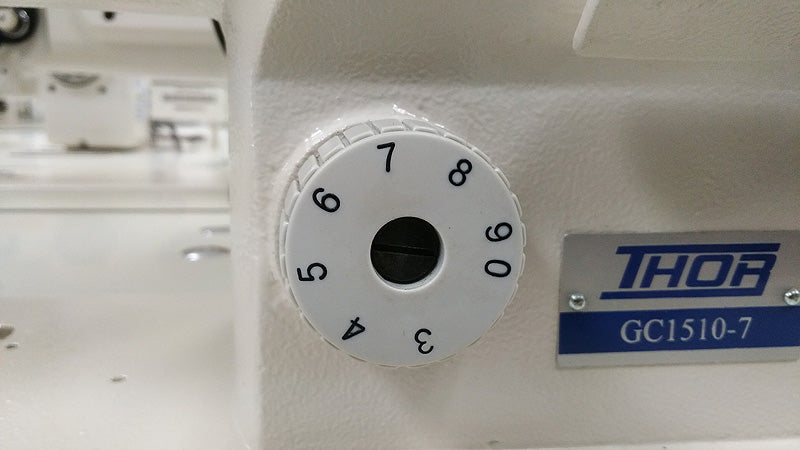

The stitch length is easily adjusted by the stitch dial.

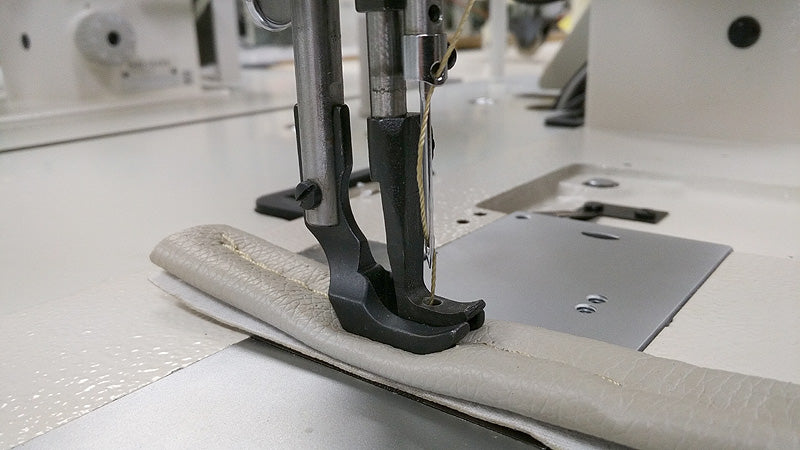

The 1510-7 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot.  This prevents the Walking Foot from snagging on thicker material.

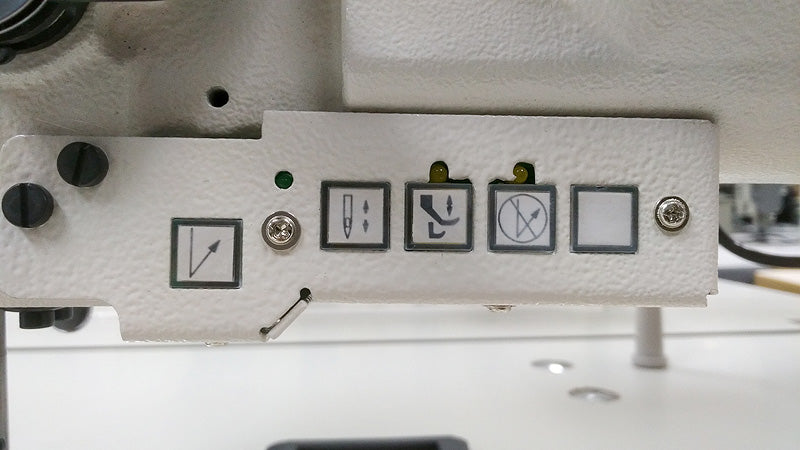

This model features FULL AUTOMATION and includes the following features:

  • Automatic Thread Trimmer
  • Automatic Back Tacks
  • Automatic Foot Lift
  • Electronic Motor with Needle-Up/Needle-Down Positioner

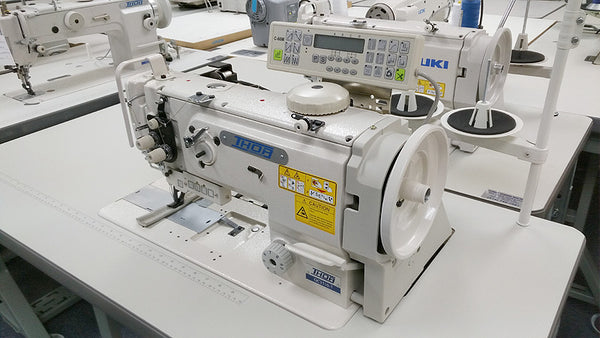

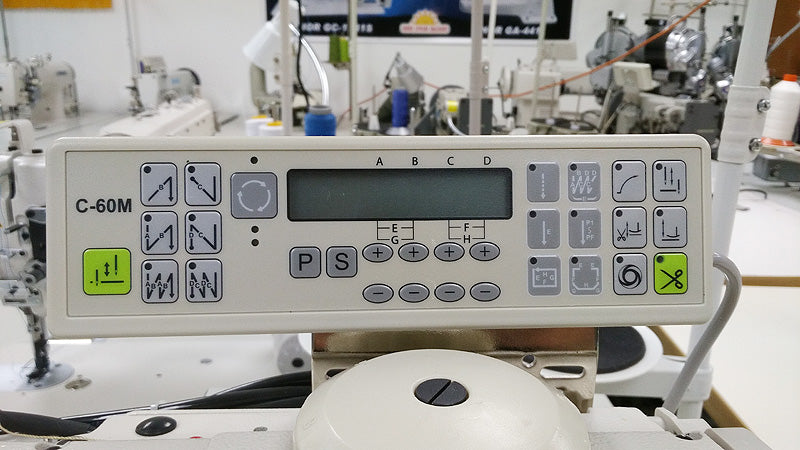

  • Top-Mounted Programmer / Control Panel
  • Speed Adjustment

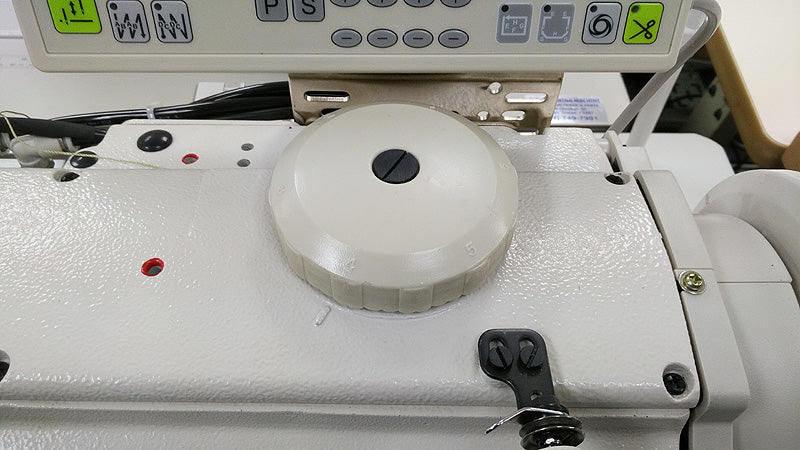

  • Stepping Foot Height Adjustment



TECHNICAL SPECS:



  • APPLICATION:  For Heavy Materials
  • MAX SEWING SPEED:  3,000 SPM
  • MAX STITCH LENGTH:  9mm Forward/Reverse (2 1/2 Stitches Per Inch)
  • NEEDLE BAR STROKE:  36mm
  • FOOT LIFT:  16mm by Foot, 9mm by Hand
  • WALKING FOOT HEIGHT ADJUSTMENT DIAL:  Standard
  • THREAD TAKE UP:  Slide Type

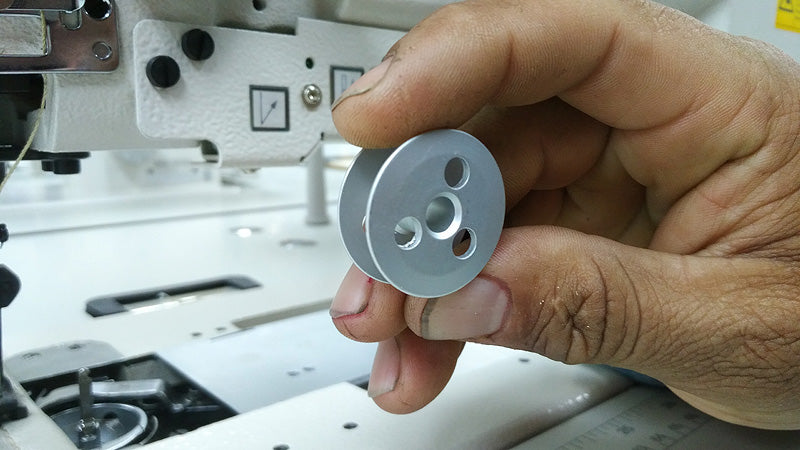

  • HOOK:  Large Hook / BIG Bobbin
  • NEEDLE:  135x17
  • THREAD:  TEX 40 to TEX 210
  • FEED ACTION:  Complete Rectangular Feed

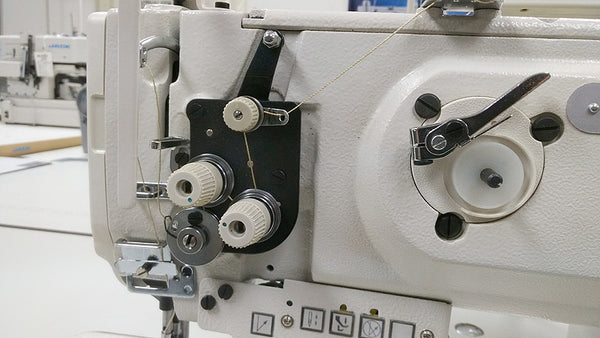

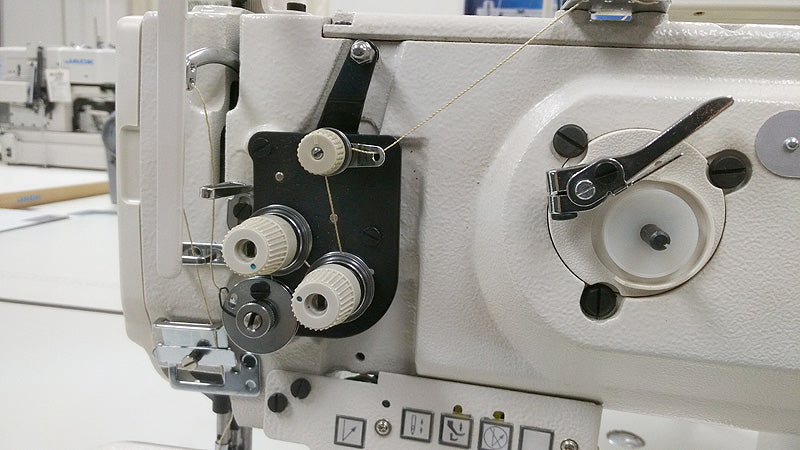

  • NEEDLE THREAD TENSION:  DUAL Tension Method
  • STITCH LENGTH CHANGE METHOD:  By Dial
  • SAFETY MECHANISM:  Standard
  • LUBRICATION:  Centralized Oil Wick Lubrication (Automatic Hook Lubrication)





MACHINE SETUP:



This machine ships complete and fully assembled - ready to sew upon arrival.

It includes:

  • Machine Head

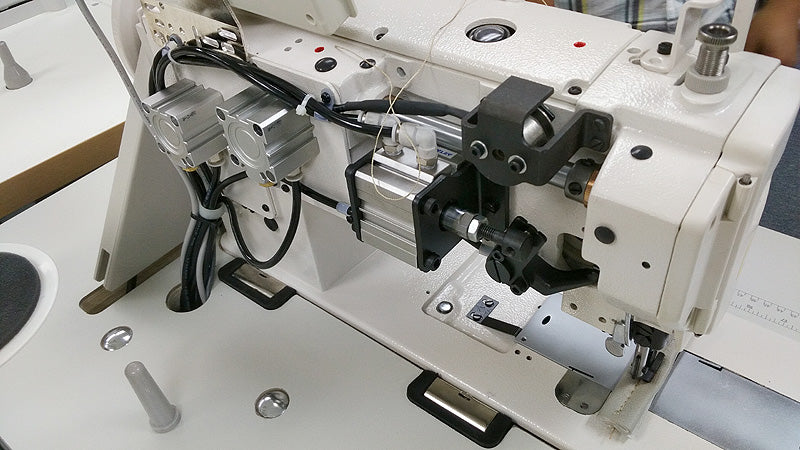

  • Air Foot Lift
  • All Automatic Functions

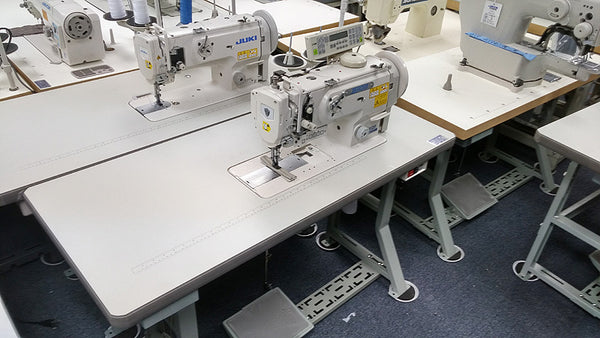

  • Table Top
  • Heavy Duty Stand
  • Needle Positioning ELECTRONIC Motor
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



MOTOR & VOLTAGE:

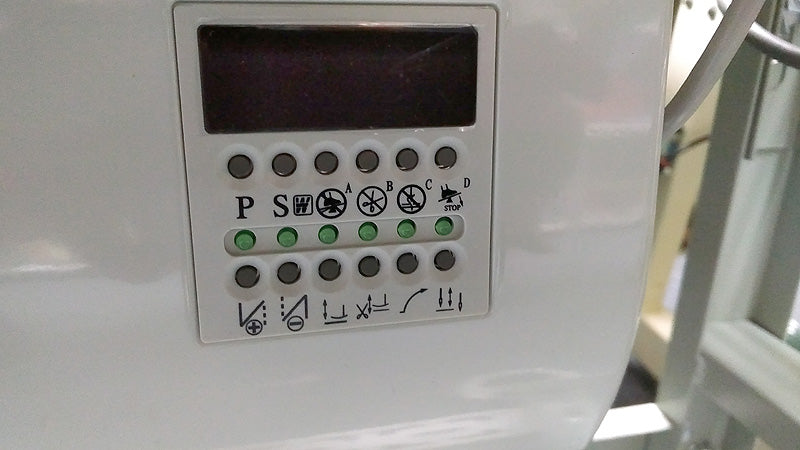

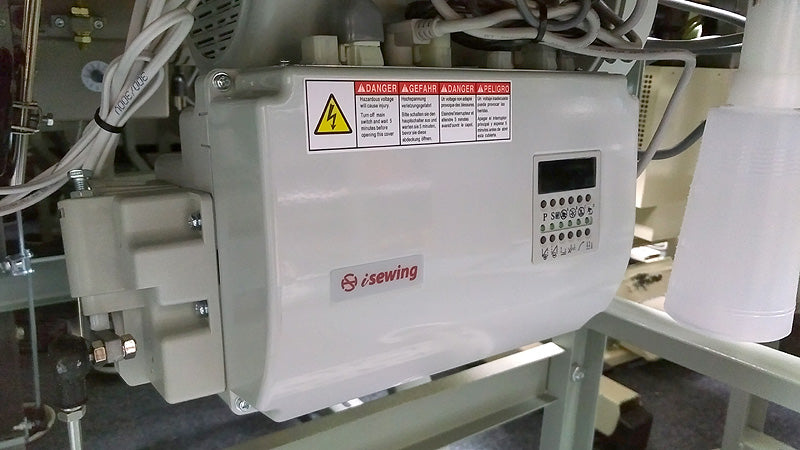

This machine is equiped with an ELECTRONIC SERVO motor operating on standard 110 Volts power.

WARRANTY:

1 Year Warranty
