THOR GC-810 Post Bed Roller Foot Sewing Machine

Regular price $1,395.00 $0.00 Unit price per
Shipping calculated at checkout.

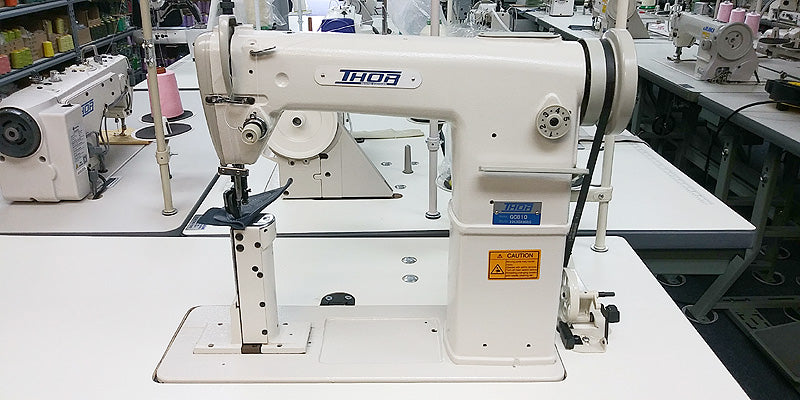

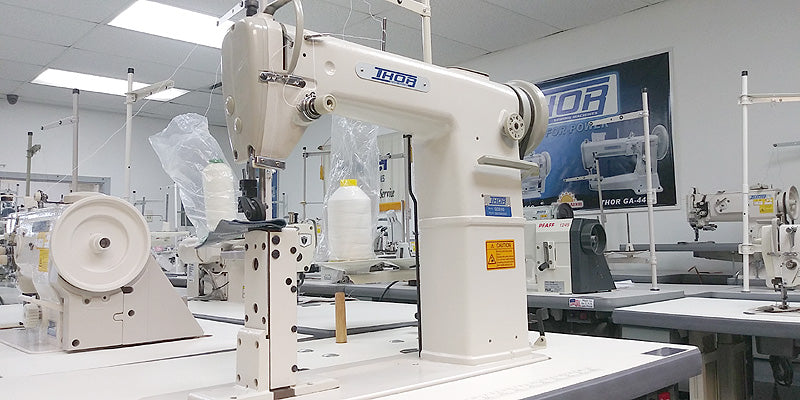

THOR GC-810 Post Bed Roller Foot Sewing Machine

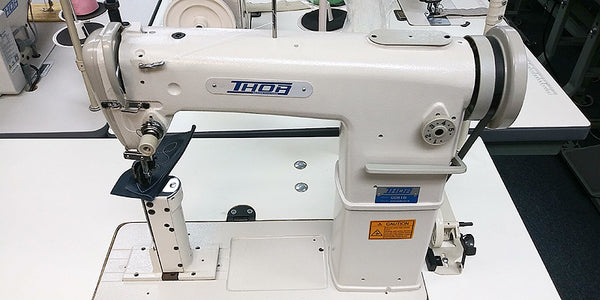

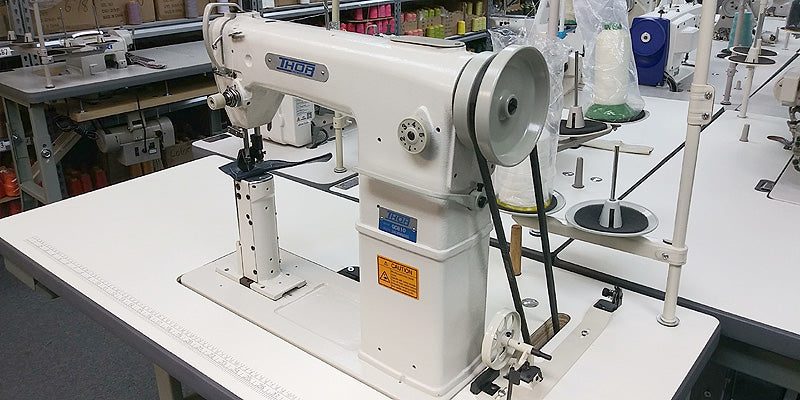

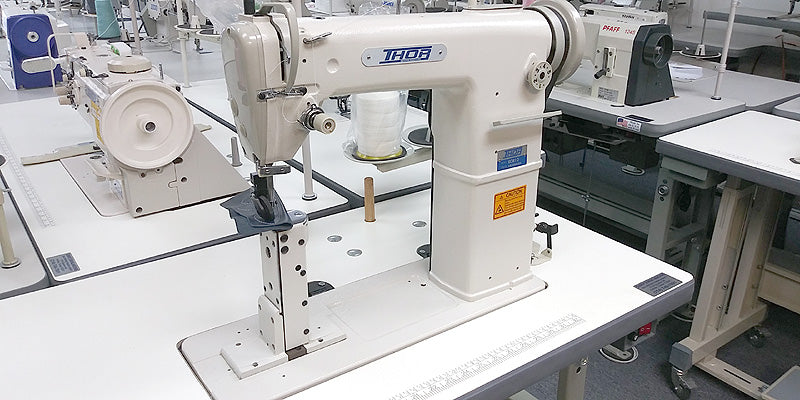

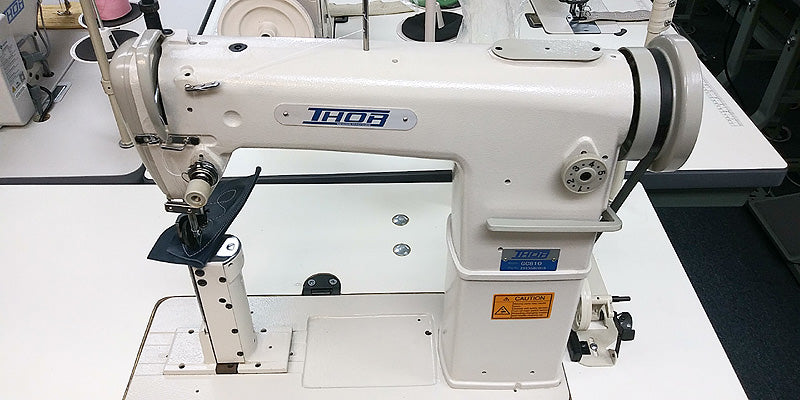

The THOR GC-810 is a drop feed lockstitch post bed machine that uses precise bevel gears to transfer power from the main shaft to the hook shaft thereby providing smooth and quiet operation.

A push button stitch regulator and manual reverse lever make this series easy to operate.

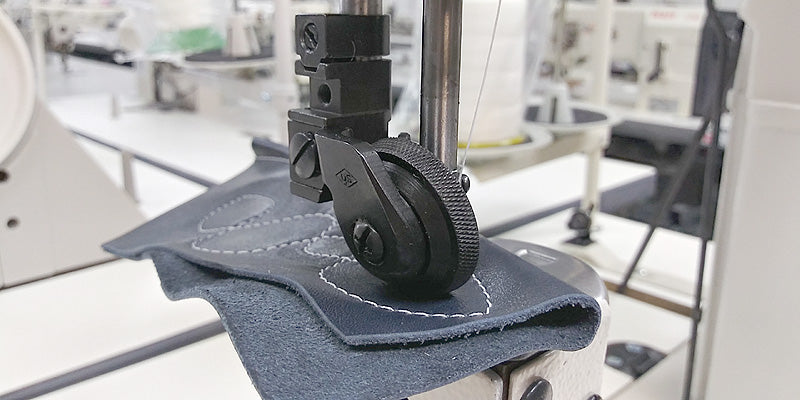

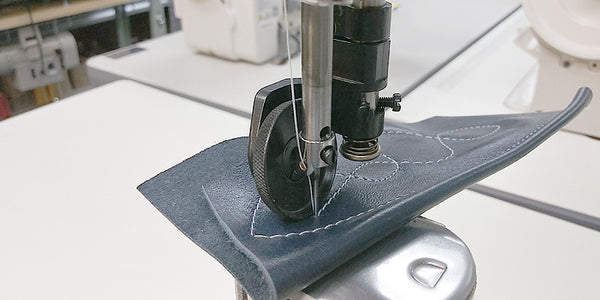

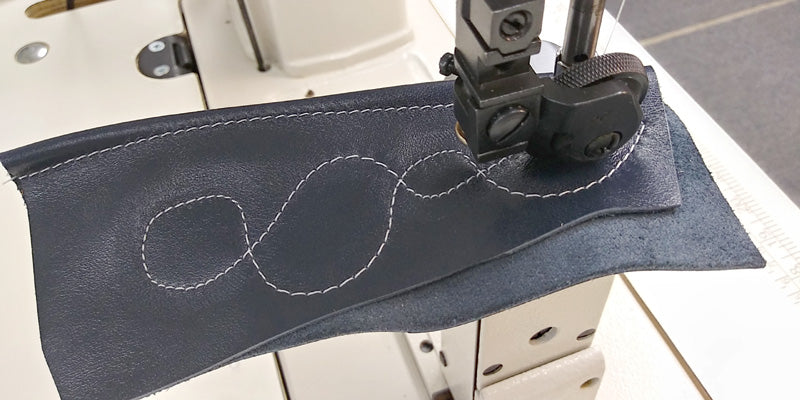

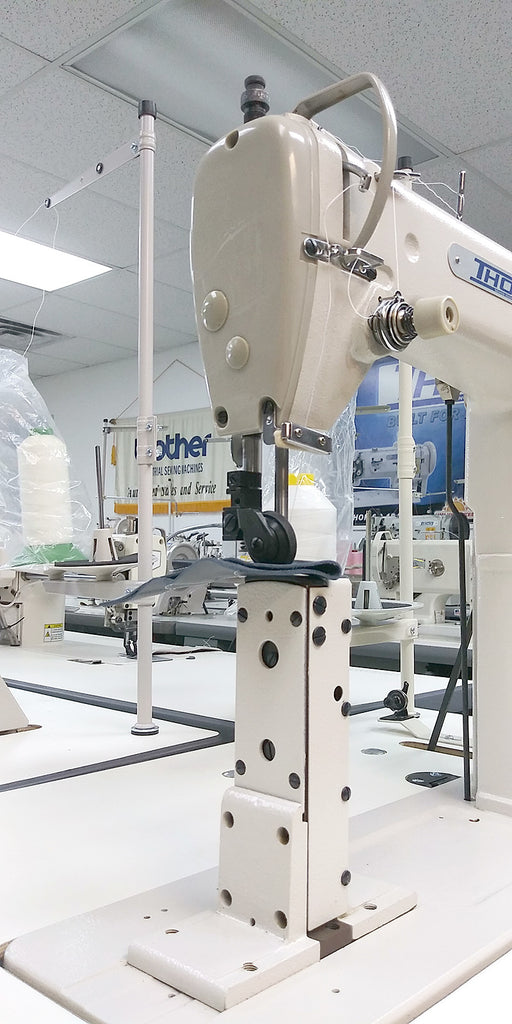

This machine is equipped with a top roller foot to assist in material feeding. These machines are used extensively in the production of leather shoes, sport shoes, leather bags, gloves and - with the addition of a speed reducer ($170.00 option), this machine is excellent for sewing patches on hats and similar odd-shapped items.



TECHNICAL SPECS:



  • Max sewing speed: 3000spm
  • Max stitch length: 4 mm
  • Needle bar stroke: 33.4 mm
  • Take up stroke: 61.5 mm
  • Presser foot lift by hand: 7.2 mm
  • Presser foot lift by foot: 10 mm
  • Needle size: DPx5 #14-18



MACHINE SETUP:



This machine ships complete and fully assembled - ready to sew upon arrival.

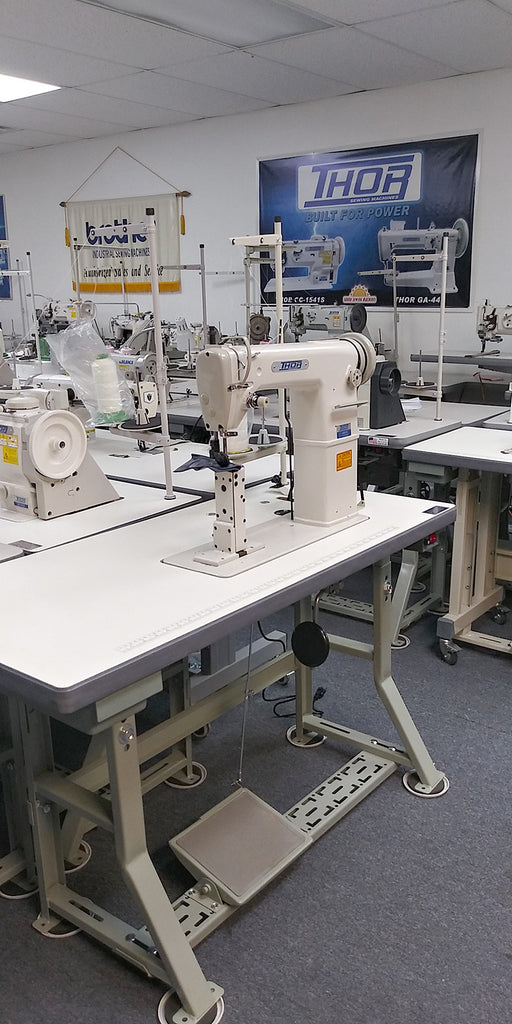

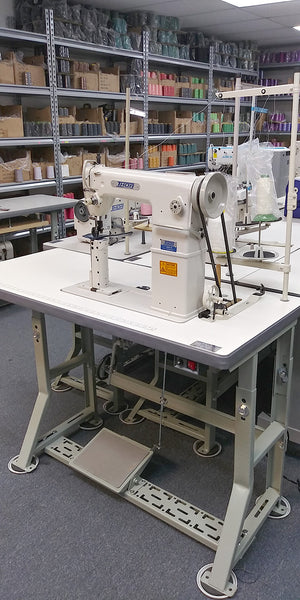

The machine set-up includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • Thread Stand
  • LED Light
  • Extra needles, bobbins



MOTOR & VOLTAGE:



This machine is equiped with a SERVO motor operating on standard 110 Volts power.

WARRANTY:



1 Year Warranty
