| Highlead GC20698-1 | ||||
| Model | GC20698-1 | GC20698-1-D | GC20698-1L | |
| Max Sewing Speed | 1800 rpm | |||
| Stitch length | 0-9 mm | |||
| Needle bar stroke | 36 mm | |||
| Thread Take-up Stroke | 74.5 mm | |||
| Presser foot lift | By hand | 8 mm | 16 mm | |
| by foot | 16 mm | 16mm Pneumatic | ||
| Needle Size | DP x 17 18#-23# |
|||
| Needle Numbers | 1 | |||
| Rotating hook | Large hook | Large hook for trimmer | Large hook | |
| Lubrication | Manually lubricated | |||
| Safety Clutch Device | ✓ | |||
| Needle Gauge | — | |||
| Motor | Servo Motor |
220V750W Servo motor | ||
| Working Space | 635 mm x 100 mm | 1000 mm x 100 mm | ||
Sunny Sewing Machines

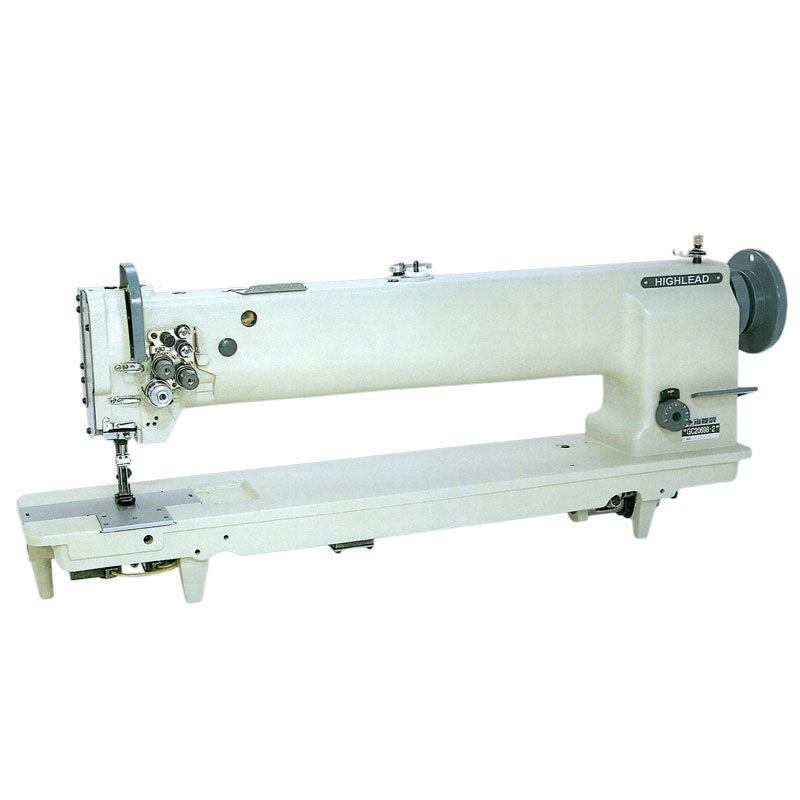

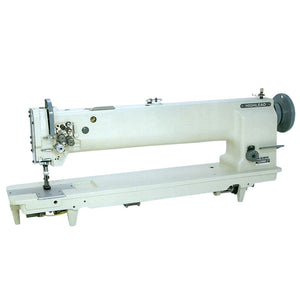

Highlead GC20698-1 Single Needle 25" Long Arm Walking Foot Sewing Machine
Regular price
$0.00
Shipping calculated at checkout.
This standard 25' long arm machine gives a wider working space for harder to handle items. The bobbin winder on he top middle of the head makes for easy operation. A large vertical axis hook provides excellent stitch quality while allowing smooth and quiet operation with a long service life. A longer version of model GC20618-1, it offers many of the same features in a longer machine and now comes in a 40″ version, model GC20698-1L (an industry first) as a special order. It is used to sew car covers, car seats, safety belts, tents, parachutes, hot air balloons, sails and other large work pieces.
Model GC20698-1-D is also available in a 25″ long under-trimming machine for added functions and higher productivity.
Specifications
