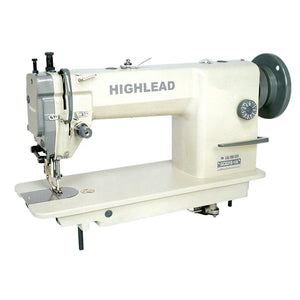

Highlead GC0318-1A Top and Bottom Feed Walking Foot Sewing Machine

$0.00

Shipping calculated at checkout.

The newest redesigned version of Highlead's world renowned GC0318 series of machines. A fully sealed back cover has been added to eliminate oil leakage and a rock shaft support mechanism is now standard for more stable stitching on heavy duty materials. The machine is available in different subclasses for specific applications including an under-trimming version (model GC0318-2AD) with link type feeding for those requiring automatic functions and increased productivity.

Specifications

Highlead GC0318-1A
Model		GC0318-1A	GC0318-2A	GC0318-1B	GC0318-2B	GC0318-1H	GC0318-2H	GC0318-2AD
Max. sewing speed		2000 r.p.m.
Stitch length		10 mm	10 mm	10 mm	10 mm	5 mm	4 mm	8 mm
Presser foot lift	By hand	6 mm
	By knee	13 mm
Thickness		8mm 8mm for synthetic leather
Needle size		DPx17 18^#-22^#	DPx17 18^#-22^#	DPx17 25^#	DPx17 25^#	DPx5 14^#	DPx5 14^#	DPx17 18^#-22^#
Rotating hook		Auto lubricated large hook
Lubrication		Auto lubricated
Auto trimmer		—						✓
Motor		Servo Motor						Servo
