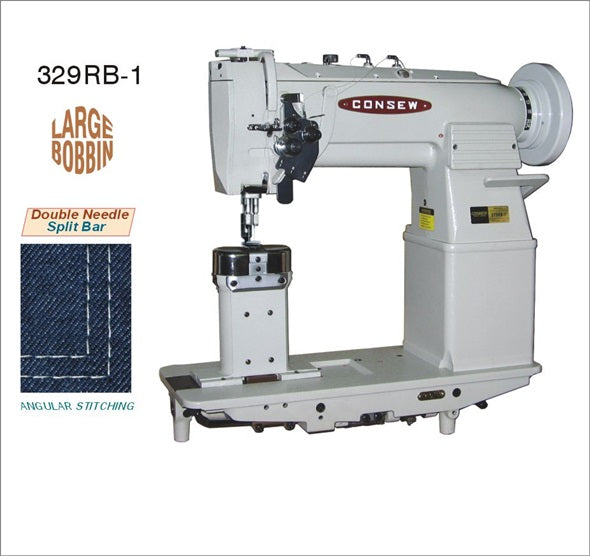

Consew 329RB-1 Post Bed Split Needle Bar Double Needle Lockstitch Sewing Machine
Regular price
$0.00
Shipping calculated at checkout.
CALL US AT 1-800-228-0001 FOR PRICING AND LEAD TIME
APPLICATIONS
- For sewing medium to medium heavy-weight fabrics, leather, canvas, vinyl, synthetics and various coated and laminated materials
- Designed for sewing operations which require decorative or functional angular stitching such as collars, pockets, shoe uppers, auto, boat and furniture upholstery, slacks, shirts, etc.
- General / parallel two-needle stitching, for top stitching and reinforcement.
- Suitable for stitching uneven, hollow, tubular and curved articles
- Also for secondary operations on finished articles such as attaching braids, pockets, tapes, etc.
FEATURES
- Centra-Lube® semi-automatic lubrication system
- Oil fed take-up
- One-touch lever easily disengages right and left needle bars
- Stitches per minute - 2400
- Large vertical axis rotary hooks and bobbins
- Reverse stitching
- Safety clutch prevents the hooks from being damaged
- Compound feed mechanism assures even feeding of material
SPECIFICATIONS
| Number of Needles | 2 (Double) |
| Feeding Mechanism | Needle Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2400 |
| Clearance Under Presser Foot | 11/32" (8.5mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 2 1/8" x 2" (54mm x 50mm) |
| Needle | 135 x 17 |
| Bobbin | Metal 16408 Pre-wound U |
| Bed Size | 7" x 20 3/8" (177mm x 518mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1 1/4" (32mm) |
| Hook | 14005 |
| Post Height | 7" (178mm) |
| Needle Gauges Available | 1/8" - 3/4" (3.2mm-19mm) |
