Automatic Back Tacks

• AUTO THREAD TRIMMER
• AUTO BACK TACKS
• AUTO FOOT LIFT
• INTEGRATED PROGRAMMER / CONTROL PANEL
• DIRECT DRIVE ELECTRONIC MOTOR with NEEDLE POSITIONER
• COMPLETE & FULLY ASSEMBLED

APPLICATIONS:

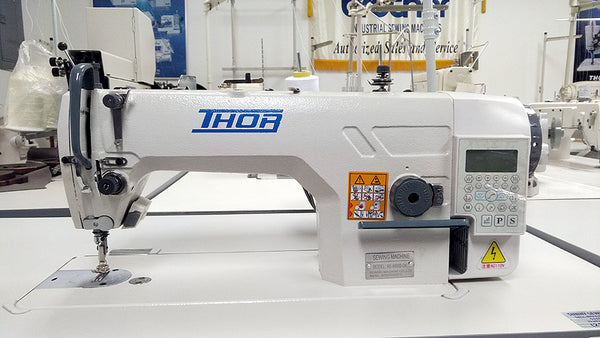

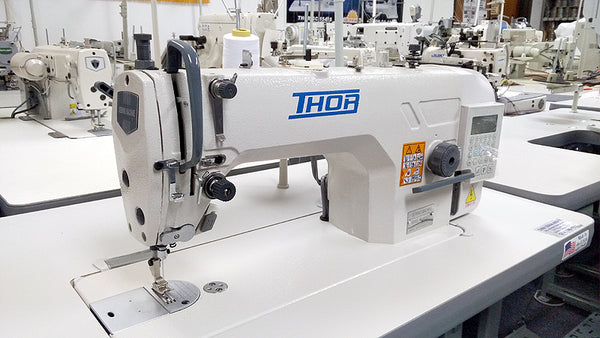

For sewing light to medium weight materials such as cottons, silks, woven and denim. This is a high speed, single needle straight-stitch, lock-stitch sewing machine. This THOR machine features automatic functions and is ideal for high speed sewing of shirts, blouses, skirts, children's wear, ladies-wear and men's wear. Equally good for high volume sewing environments as well as alteration shops and home-based designers.

FEATURES:

This model features FULL AUTOMATION and includes the following features:

Automatic Thread Trimmer

Knee Lift

Electronic Motor with Needle-Up/Needle-Down Positioner

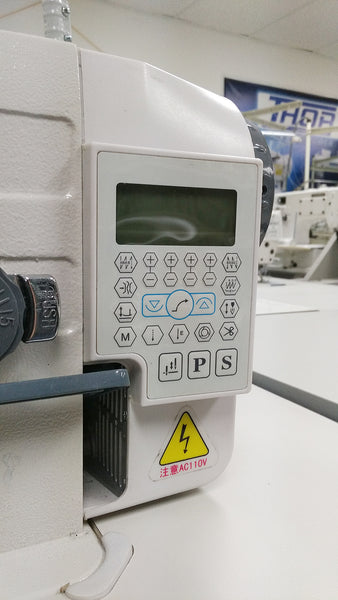

Integrated Programmer / Control Panel Speed Adjustment

TECHNICAL SPECS:

APPLICATION: For Light to Medium Weight Materials

MAX SEWING SPEED: 5,000 SPM

MAX STITCH LENGTH: 5mm Forward/Reverse

FOOT LIFT: 10mm by Knee Lift

NEEDLE: DB-257 Sizes 9 to 18

THREAD: TEX 27 to TEX 70

STITCH LENGTH CHANGE METHOD: By Dial

LUBRICATION: Automatic Lubrication with Oil Pan

MACHINE SETUP:

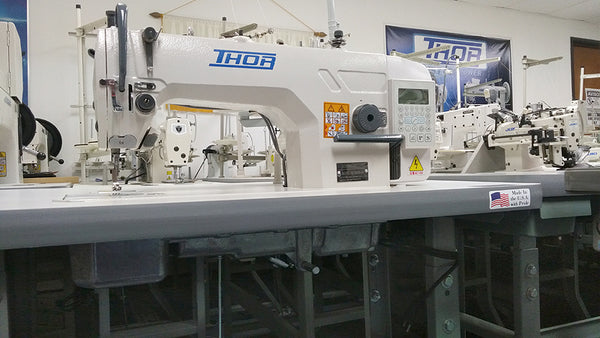

This machine ships complete and fully assembled - ready to sew upon arrival.

It includes:

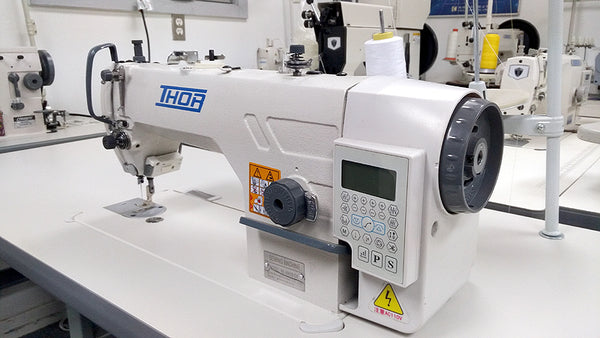

Machine Head with Integrated Control Panel

Table Top Stand

ELECTRONIC Motor

LED Light

Manuals

Extra needles, bobbins, and tools.

MOTOR & VOLTAGE:

This machine is equipped with an ELECTRONIC motor operating on standard 110 Volts power.

WARRANTY:

1 Year Warranty
