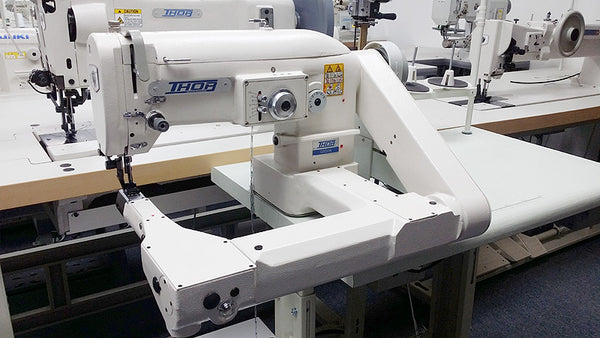

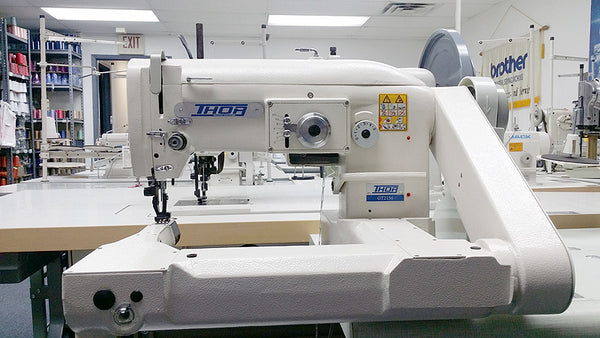

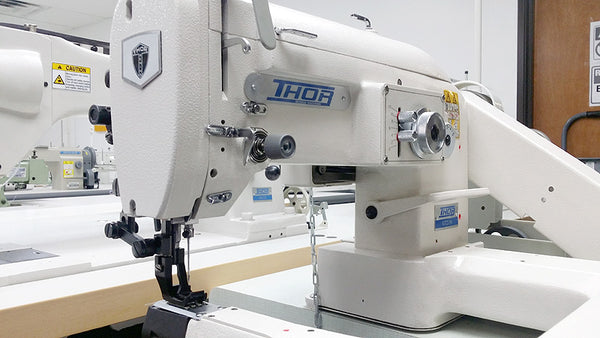

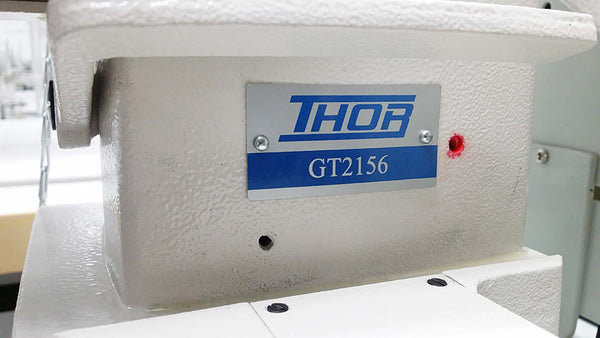

THOR GT2156 Feed Off The Arm Walking Foot Sewing Machine

$0.00

Shipping calculated at checkout.

CALL US AT 1-800-228-0001 FOR PRICING AND LEAD TIME

APPLICATIONS:

For sewing medium to heavy weight materials such as fabrics, leather, vinyl, synthetics, neoprene, laminated and coated products.

Suitable for sewing such products as medical braces, wet suits, leather belts, leather handles, gun cases, tarps, awnings, sunbrella, etc.

FEATURES:

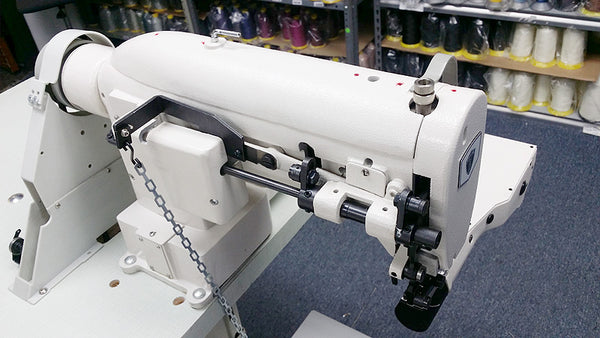

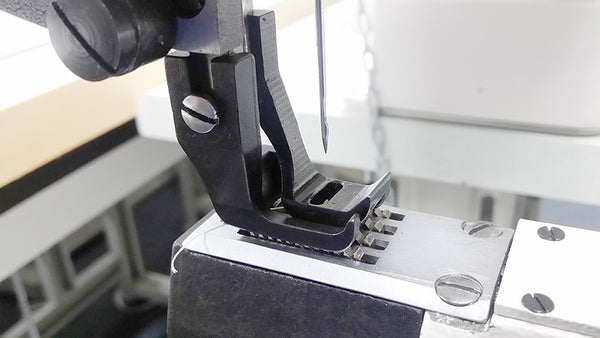

This machine is designed to sew medium to heavy weight materials. It features top and bottom feeding with a walking foot mechanism. This machine is not needle feed.

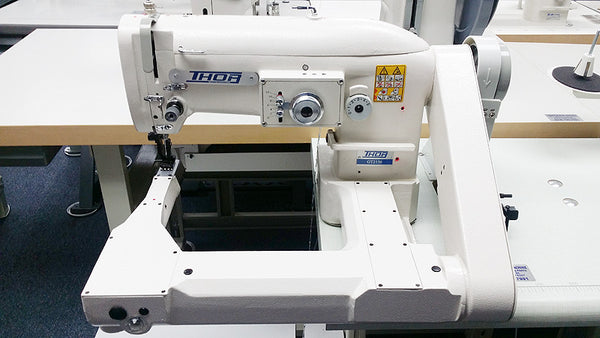

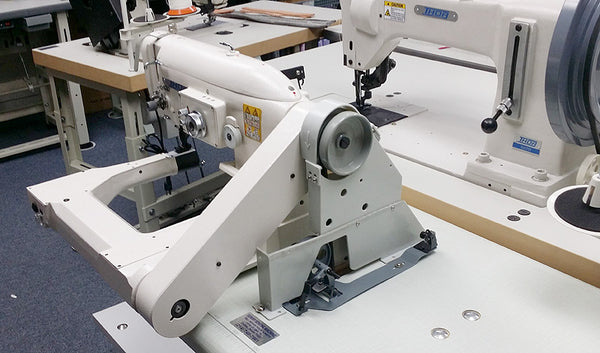

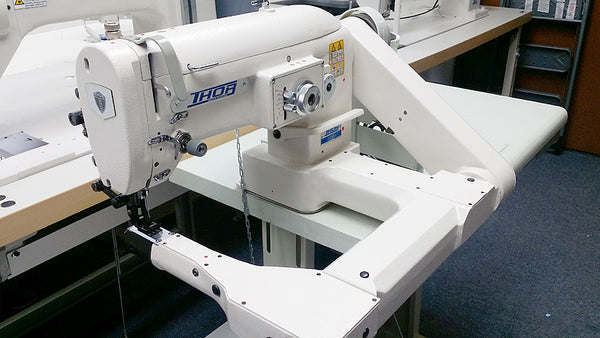

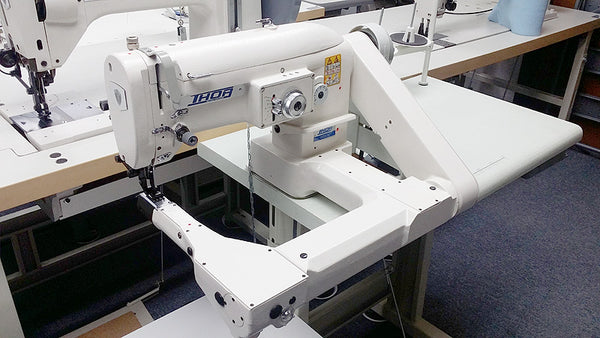

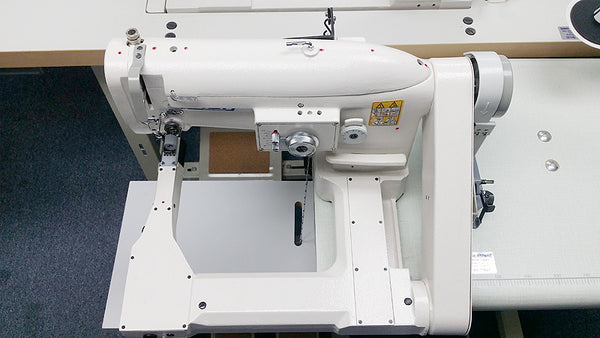

The free arm with a small cylinder gives you the ability to easily sew cylindrical items and manipulate odd shaped pieces around it.

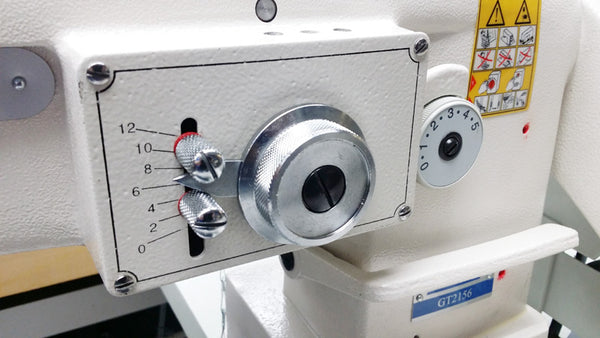

Easily change the stitch length and zig zag width by built-in dials.

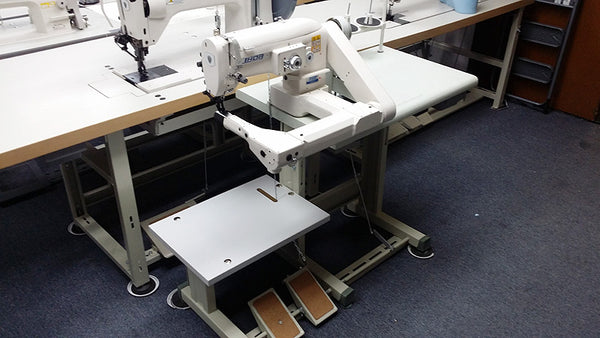

This machine is sold and ships complete and fully assembled with table top, stand and 110 Volt servo motor.

The machine comes with 1 Step Normal Zig Zag Cam. 2 or 3 Step Retrofit is available for an additional $300.00

TECHNICAL SPECS:

APPLICATION: For Heavy Materials
MAX SEWING SPEED: 1,200 SPM
MAX STITCH LENGTH: 4mm Forward/Reverse
MAX ZIG ZAG WIDTH: 8mm
FOOT LIFT: 13mm by Knee, 9mm by Hand
HOOK: Regular Size Hook and Bobbin
NEEDLE: DPx17, Sizes 14 to 22
THREAD: TEX 40 to TEX 135
FEED ACTION: Top and Bottom Feed (Drop Feed Walking Foot)
STITCH LENGTH CHANGE METHOD: By Dial
LUBRICATION: Centralized Oil Wick Lubrication (Automatic Hook Lubrication)

MACHINE SETUP:

This machine ships complete and fully assembled - ready to sew upon arrival.

It includes:

Machine Head
Table Top
Heavy Duty Stand
SERVO Motor
LED Light
Manuals
Extra needles, bobbins, and tools.

MOTOR & VOLTAGE:

This machine is equiped with a SERVO motor operating on standard 110 Volts power.

WARRANTY:

1 Year Warranty
