APPLICATIONS:

For sewing medium to heavy weight materials such as denim and other heavy weight fabrics, light leather, vinyl, and webbing. Suitable for sewing such products as jeans, hand bags, belts, wallets, book covers, webbing straps, canvas bags and covers, etc.

FEATURES:

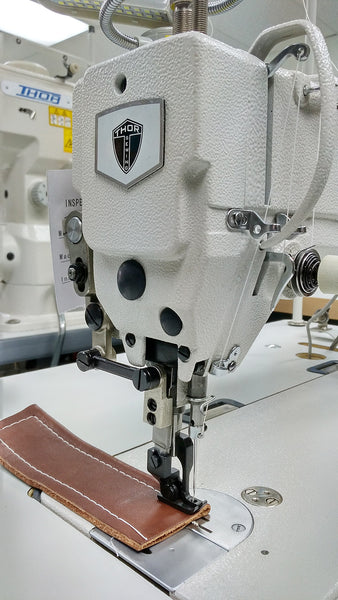

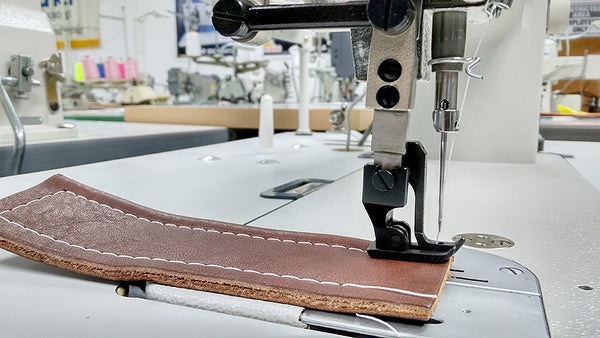

Single needle, Top and Bottom Feed with Walking Foot (Not a Needle Feed), Reverse, Adjustable Stitch Length up to 8mm, Ideal Thread Sizes from TEX 40 to TEX 138, Automatic Lubrication with Oil Pan and Oil Pump.

The high 16mm presser foot lift enables easy material handling for heavy sewing.

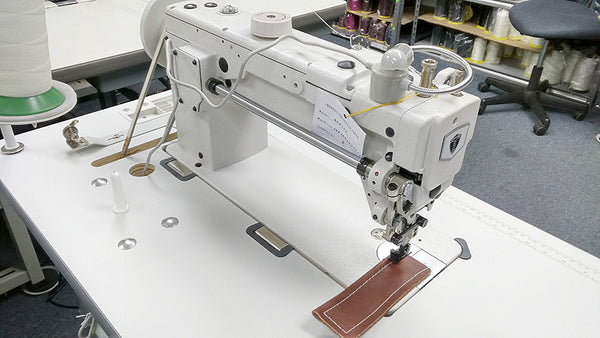

13" LONG ARM - gives you 3 more inches of work space compared to other sewing machines in the same class

TECHNICAL SPECS:

APPLICATION: For Medium to Heavy Materials

MAX SEWING SPEED: 2,000 SPM

MAX STITCH LENGTH: 8mm Forward/Reverse

NEEDLE BAR STROKE: 36mm

FOOT LIFT: 16mm by Knee, 9mm by Hand

HOOK: Horizontal Axis LARGE Capacity Hook

NEEDLE: 135x17

THREAD: TEX 40 to TEX 138

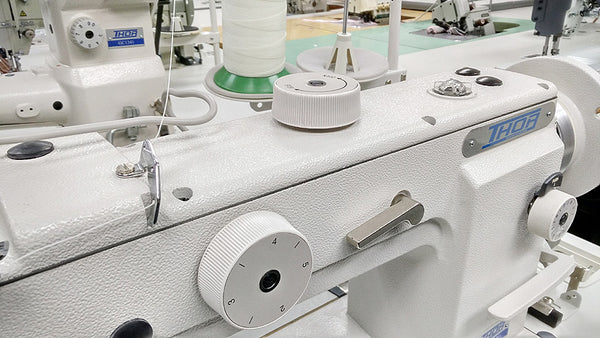

STITCH LENGTH CHANGE METHOD: By Dial

LUBRICATION: Full Automatic Lubrication with Oil Pump / Oil Pan

MACHINE SETUP:

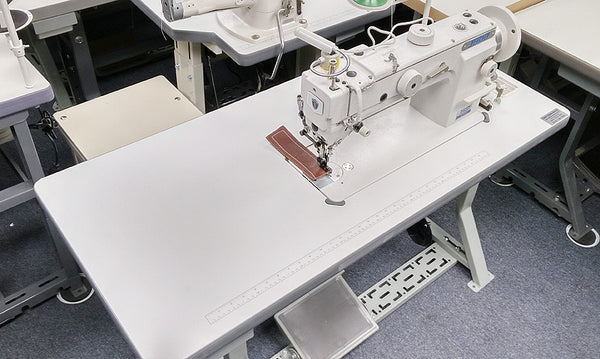

This machine ships complete and fully assembled - ready to sew upon arrival.

It includes:

Machine Head

Table Top

Heavy Duty Stand

SERVO Motor

LED Light

Manuals

Extra needles, bobbins, and tools.

MOTOR & VOLTAGE:

This machine is equipped with a SERVO motor operating on standard 110 Volts power.

WARRANTY:

1 Year Warranty
