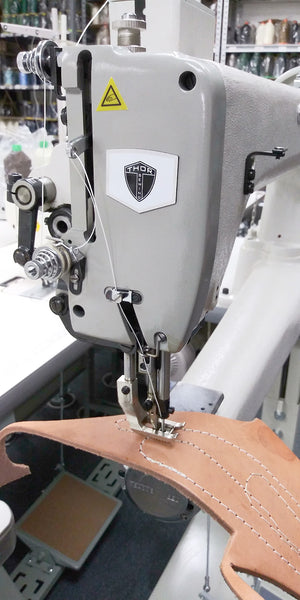

THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine
Sunny Sewing Machines

THOR GA441L-25 Extra Heavy Duty Cylinder Arm Walking Foot Sewing Machine

$0.00 $0.00
Shipping calculated at checkout.

CALL US AT 1-800-228-0001 FOR PRICING AND LEAD TIME

SRG Package

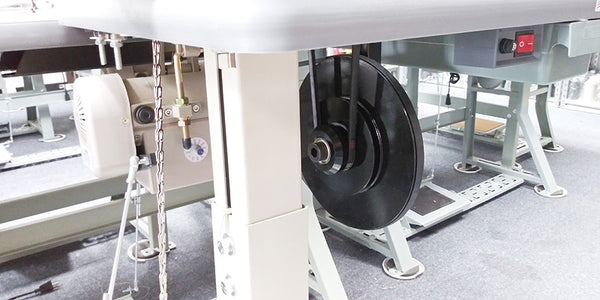

  • Heavy Duty Ball Bearing Speed Reducer

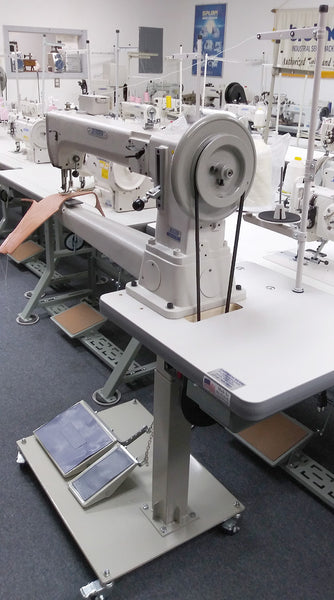

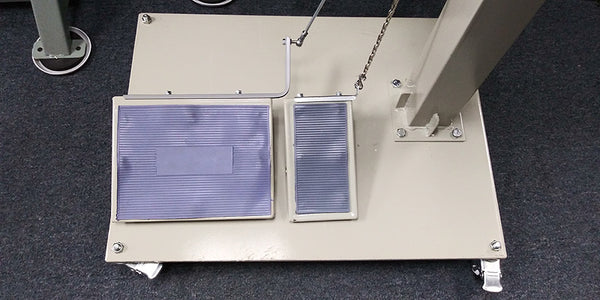

  • Heavy Duty Pedestal Stand with Locking Casters
  • Roller Guide

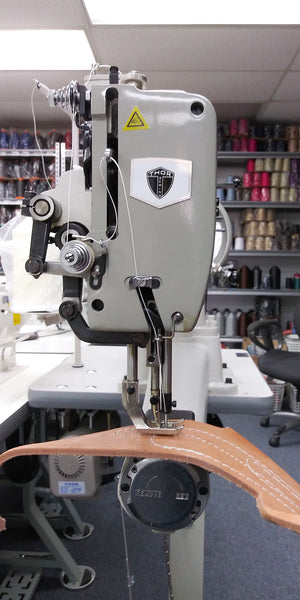

  • Double Toe Presser Foot
  • Standard Presser Foot
  • Removable Flat Table
  • 110 Volt 3/4 HP (550 Watt) Servo Motor w Speed Control



APPLICATIONS:



  • For heavy to EXTRA HEAVY weight materials such as suades, leather, vinyl, synthetics, laminated and coated products.
  • Suitable for sewing such products as cargo straps, containers, saddles, covers, sails, tents, camping trailer covers, awnings, hand bags, etc.


FEATURES:



  • The high 20mm presser foot lift enables easy material handling for extra heavy sewing.
  • "Adler Style" stitch length twist lever and reverse lever for accurate stitch control.

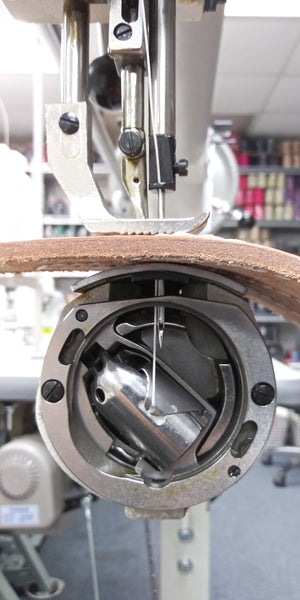

  • Large SHUTTLE hook for extended bobbin thread life even with the thickest of threads.
  • Will sew with thread sizes from 135 to 450.
  • Reverse lever.

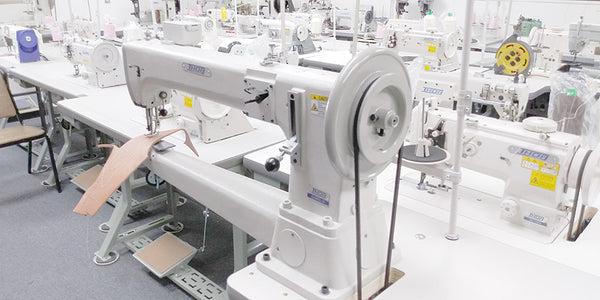

  • Large Fly-Wheel for easy hand operation and needle positioning, plus...
  • Speed Reducer
  • Roller Guide
  • Pedestal Stand with Casters

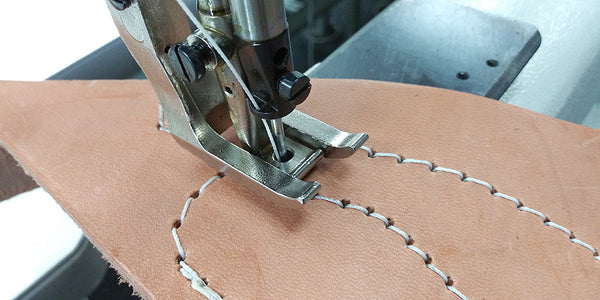

  • Double Toe Presser Foot

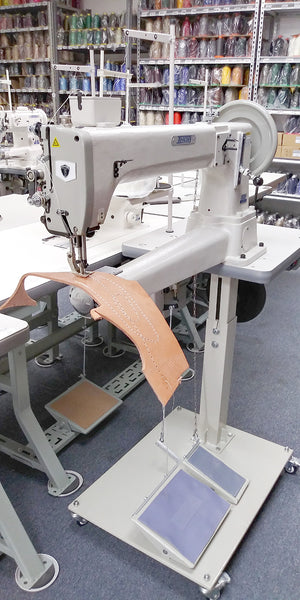

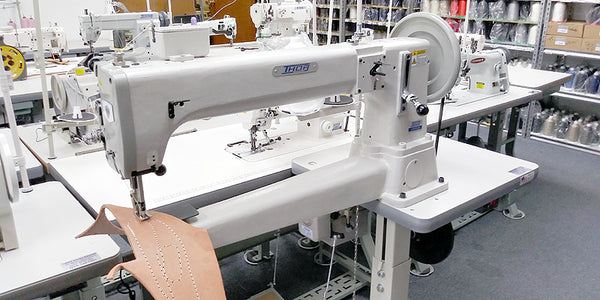

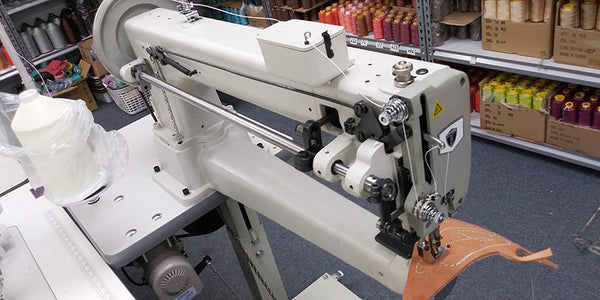

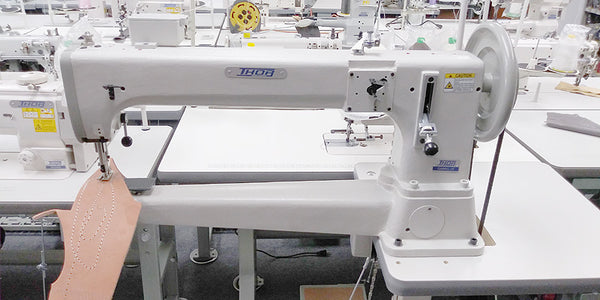

  • 25" Long Cylinder Arm



TECHNICAL SPECS:



  • APPLICATION:  For Heavy to EXTRA Heavy Materials
  • MAX SEWING SPEED:  800 SPM
  • MAX STITCH LENGTH:  15mm (.6") Forward/Reverse
  • NEEDLE BAR STROKE:  56mm
  • FOOT LIFT:  20mm (3/4") by Knee, 12mm (1/2") by Hand
  • HOOK:  LARGE CAPACITY Shuttle Hook
  • NEEDLE:  DYX3 or 794 System
  • THREAD:  TEX 135 to TEX 450





MACHINE SETUP:



This machine ships complete and fully assembled - ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



MOTOR & VOLTAGE:

This machine is equipped with a SERVO motor operating on standard 110 Volts power.

WARRANTY:

1 Year Warranty
