APPLICATIONS:

• For sewing heavy to extra heavy weight materials such as canvas, leather, vinyl, synthetics, rubberized, laminated and coated products.
• Suitable for sewing such products as tents, tarps, awnings, truck covers, auto, marine and furniture upholstery, field covers, fabric structures and heavy bulky products.
• Long and wide working space is suitable for size-able materials such as tents and sails.

FEATURES:

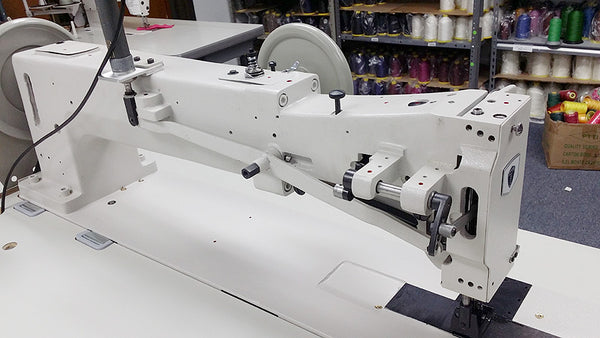

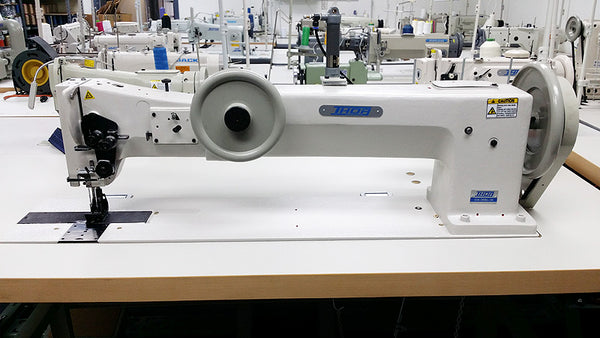

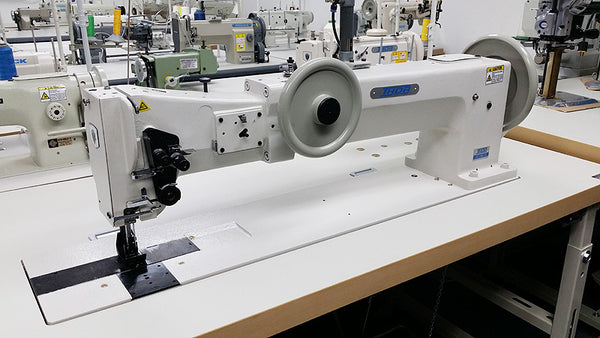

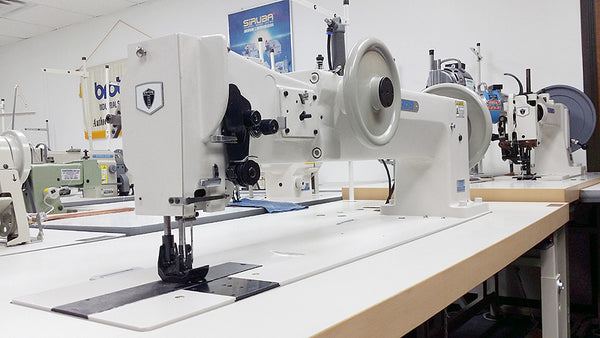

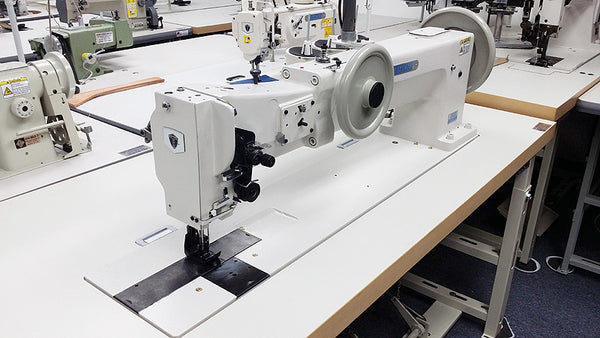

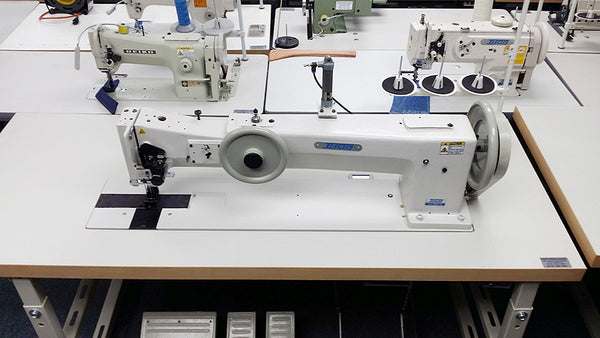

• 30 Inch Long Arm

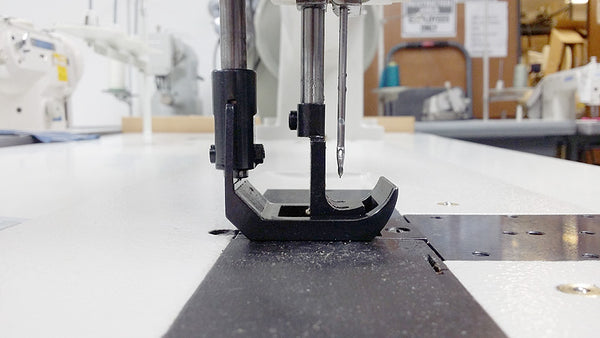

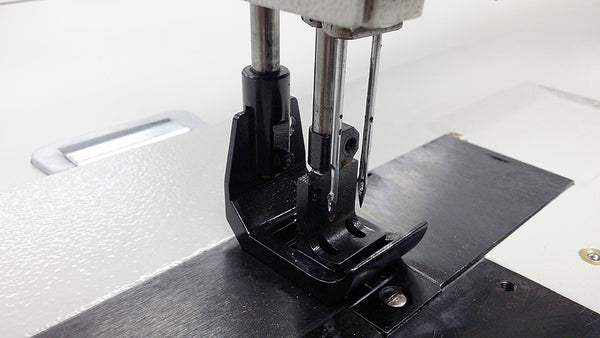

• Compound Feed and Walking Foot Mechanism assures even feeding of materials

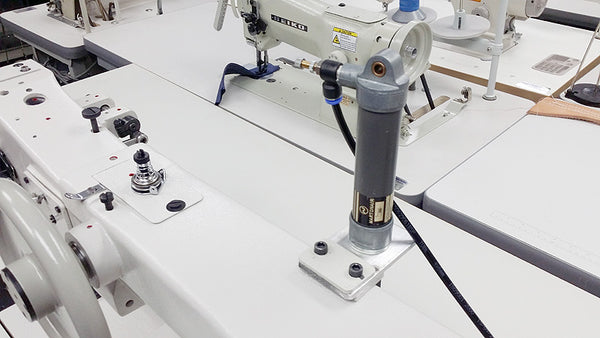

• Air Foot Lift
• Reverse Feed operated by foot control
• Built-In Bobbin Winder

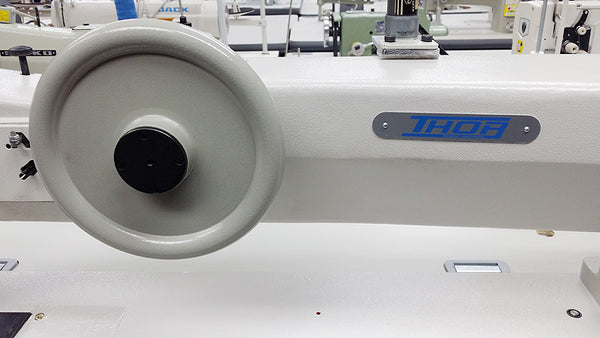

• Front Hand-wheel allows for easy positioning of the needle position
• Extra LARGE vertical axis hooks and bobbins

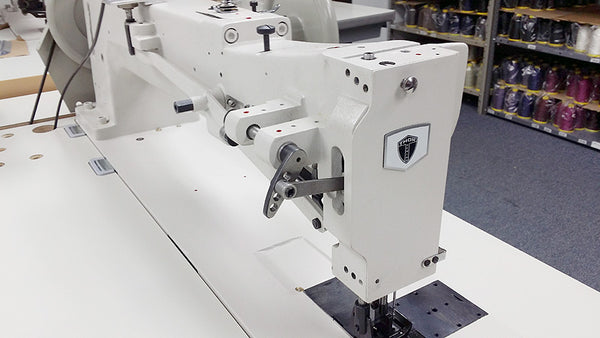

• Safety Clutch to prevent the hook from damage

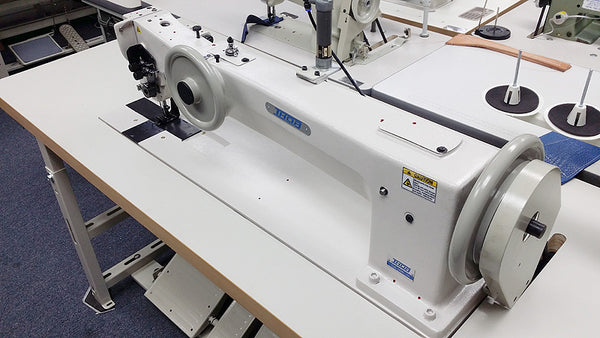

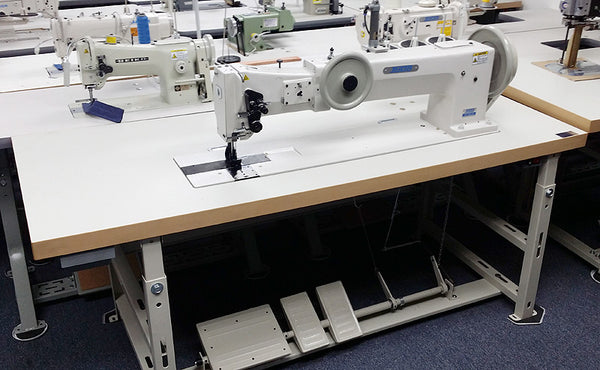

• Complete and FULLY ASSEMBLED with Long Table Top, Heavy Duty Stand and 110 Volt Servo Motor

TECHNICAL SPECS:

• APPLICATION: For Heavy to EXTRA HEAVY Materials
• MAX SEWING SPEED: 1,200 SPM
• MAX STITCH LENGTH: 10 mm Forward/Reverse
• NEEDLE BAR STROKE: 47.3mm
• FOOT LIFT: 24mm by Knee (Air Lift System), 20mm by Hand
• THREAD TAKE UP: Slide Type
• HOOK: Vertical Axis EXTRA LARGE Capacity Hook

MACHINE SETUP:

This machine ships complete and fully assembled - ready to sew upon arrival.

It includes:

• Machine Head
• Air Foot Lift
• Table Top

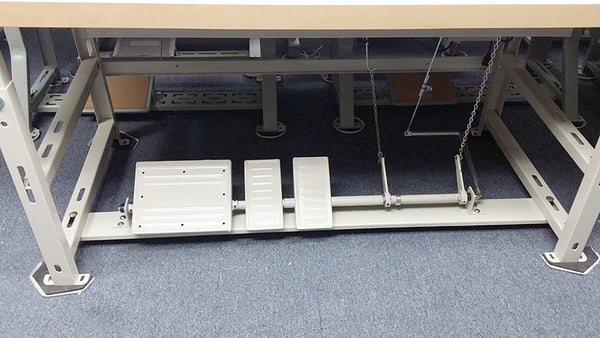

• Heavy Duty Stand
• SERVO Motor
• LED Light
• Manuals Extra needles, bobbins, and tools
