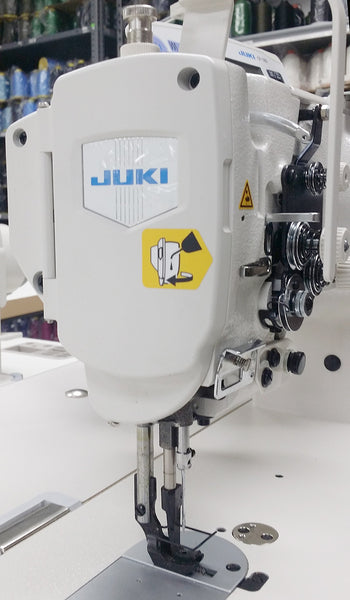

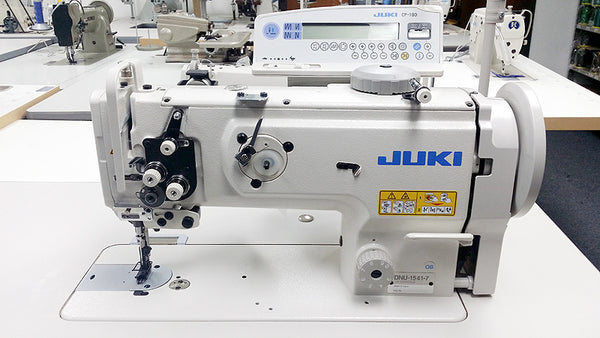

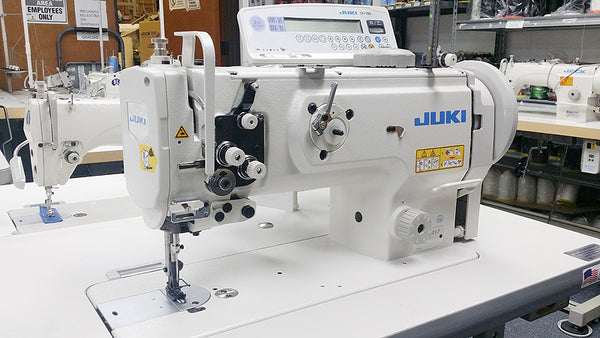

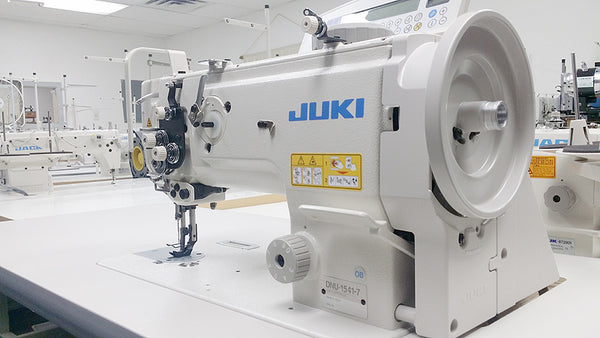

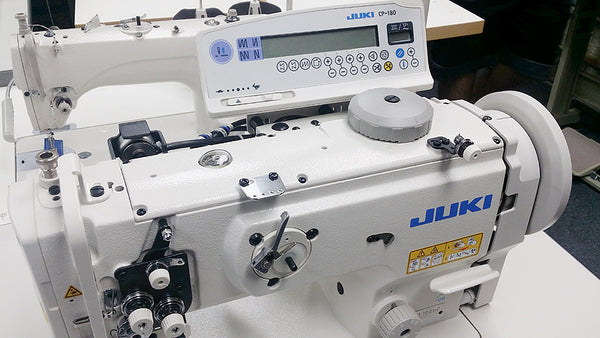

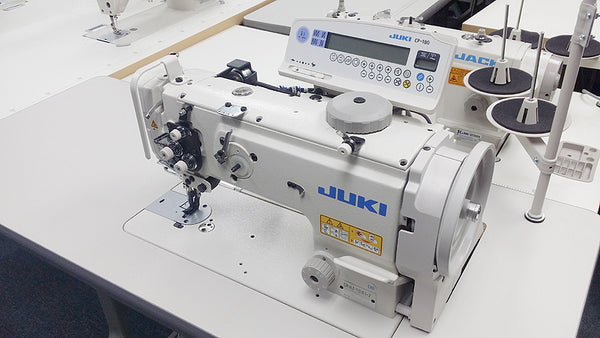

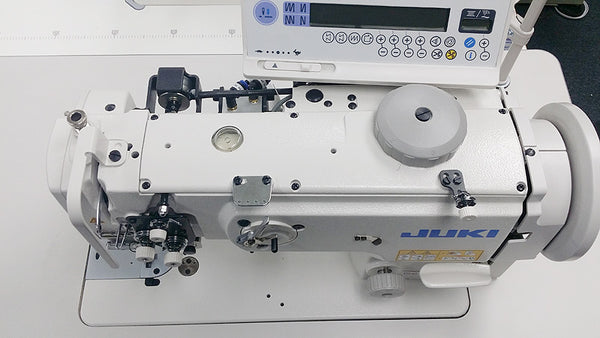

The JUKI DNU-1541-7 is a FULL AUTOMATIC single needle walking foot machine for sewing medium to heavy weight leather, canvas, vinyl and thick synthetic materials. This machine features:

•

• Automatic Thread Trimmer

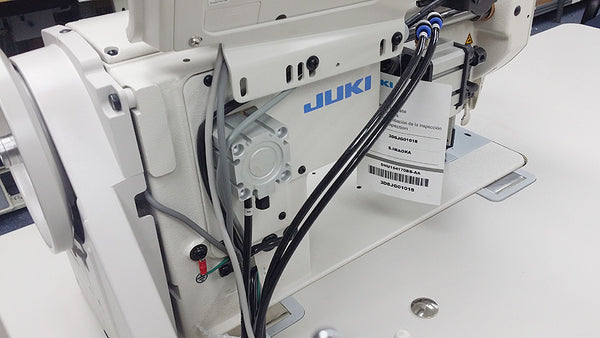

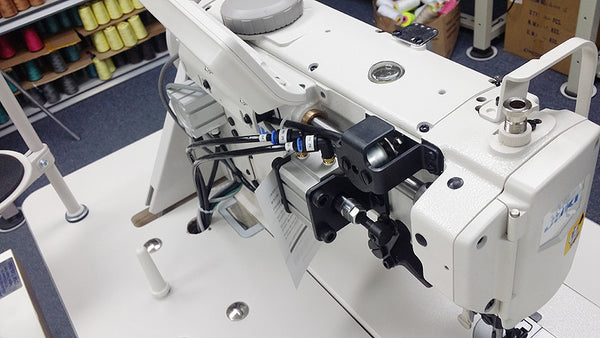

• Automatic Foot Lift (Pneumatic - Air Driven)
• Automatic Back Tack Settings

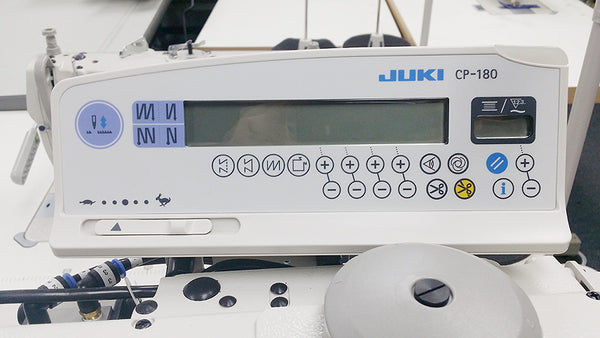

• CP-180 Full Size Control Panel
• Genuine JUKI Control Box and Motor

Great machine for upholstering automotive, marine and aviation seats, furniture upholstery, leather bags, belts, wallets and other similar articles.

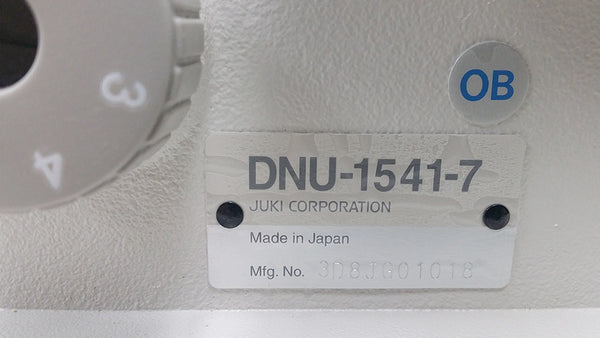

This JUKI machine is made in JAPAN. Undisputed quality of materials and workmanship make this machine one of the most loved in the high end upholstery industry.

With its larger needle-bar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness.

The machine's rectangular feeding motion promises the consistent feeding of materials of all thickness without stitch gathering.

TECHNICAL SPECS:

MAX SEWING SPEED: 2,500 SPM (Stitches Per Minute)

MAX STITCH LENGTH: 9 mm

FOOT LIFT: 16 mm by Knee

NEEDLE SYSTEM: 135 x 17

RECOMMENDED THREAD: Bonded Nylon from 69 to 138

BOBBIN: LARGE Bobbin & Hook

SAFETY MECHANISM: Yes - Standard

MACHINE SETUP:

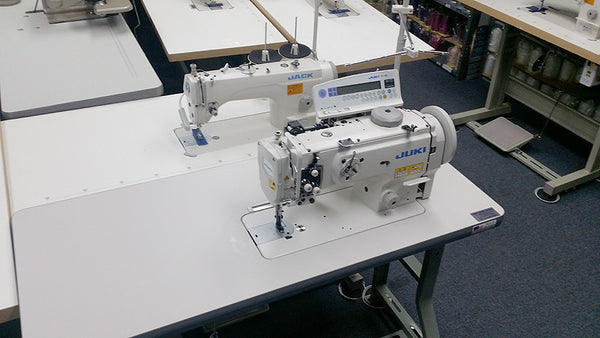

This machine ships complete and fully assembled - ready to sew upon arrival.

It includes:

Machine Head

CP-180 Control Panel

Pneumatic (Air) Automatic Foot Lift

Table Top

Heavy Duty Stand

SERVO Motor

LED Light

Thread Stand

Manuals Extra needles, bobbins, and tools.

MOTOR & VOLTAGE:

This machine is equipped with a SERVO motor operating on standard 110 Volts power.

WARRANTY:

1 Year Warranty
