Consew P2339RBL-18 Double Needle Walking Foot Sewing Machine P2339RBLH-18
CALL US AT 1-800-228-0001 FOR PRICING AND LEAD TIME
FEATURES
• Double Needle
• Long Arm with 18” Working Space
• Large Vertical Axis Automatically Oiled Hooks
• Oil Pump System with Adjustable Oil Flow
• Upper Oil Glass Sight
• Barrel-type, Locking Stitch Regulator
• Reverse • Large Top-Loaded Bobbins
• Safety Clutch • Quick Tension Release
• Locking Slide Plate for easy bobbin access.
• Adjustable Take-Up Thread Guide for thread loop timing
ADDITIONAL INFORMATION
P2339RBL-18 Manual & Parts Book
Consew Sewing Machine P2339RB Demo: https://youtu.be/7pxv_f93RXM
SPECIFICATIONS
| Number of Needles | 2 (Double) |
| Feeding Mechanism | Walking Foot |
| Workspace | Long Arm |
| Standard or Full Function | Standard Functions |
| Stitch Type | 301 |

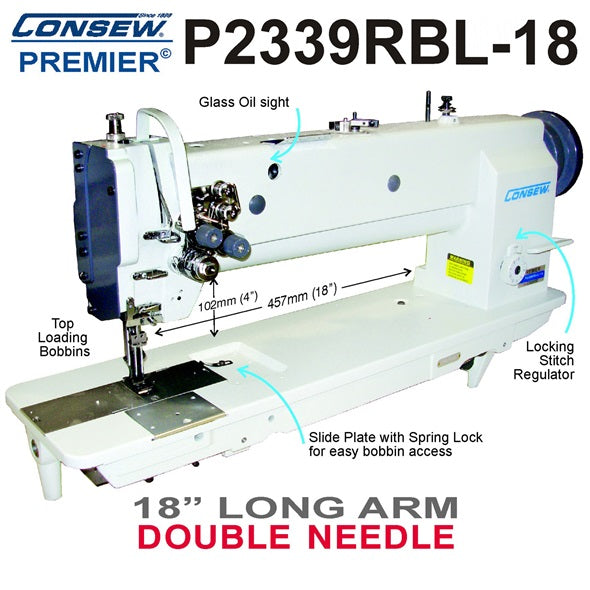

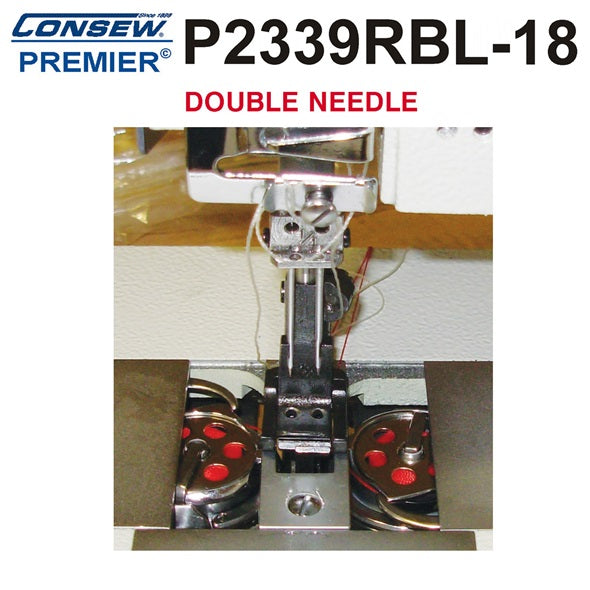

P2339RBL-18 SPECIFICATIONS
• Speed, Max. (S.P.M.): 2000 *Speed depends on thread, material and operation.
• Presser Foot Lift: By Hand- 5/16" (8 mm) / By Knee- 33/64" (13 mm)
• Needle Bar Stroke: 1-27/64" (36 mm)
• Stitch Length, Max: 2.8 s.p.i. (9 mm)
• Work Space: 18" x 4-1/4" (457 x 110 mm)
• Working Height Under Arm: 4” (102 mm) maximum
• Needles: 135 x 17 (x 2)
• Pre-wound Bobbin: U or S

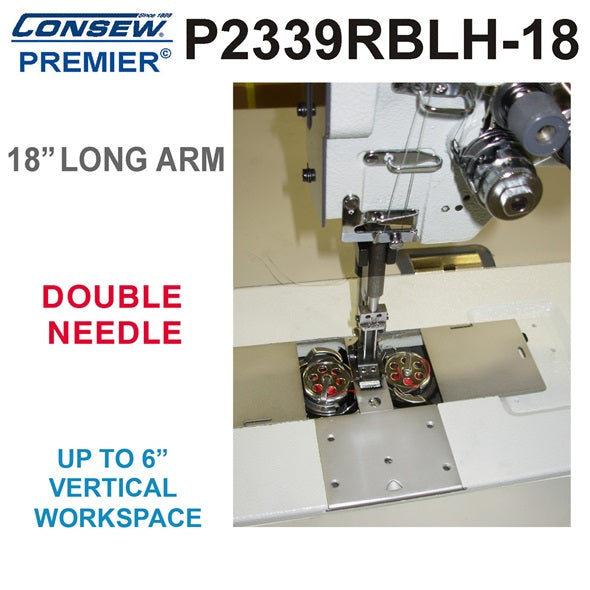

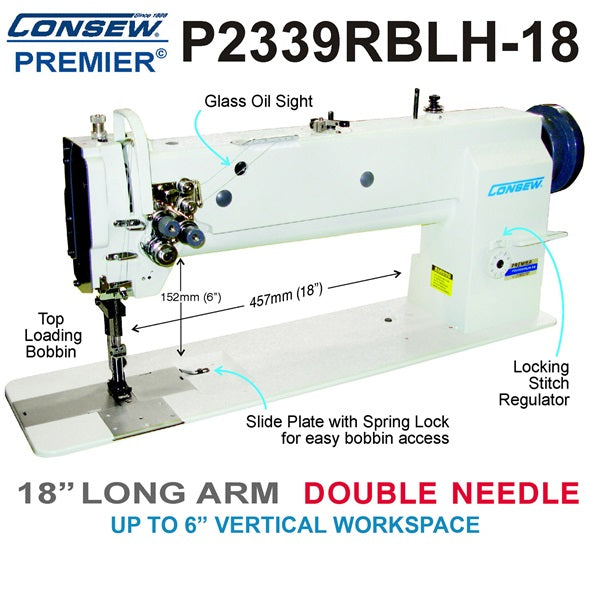

P2339RBLH-18 SPECIFICATIONS
• Speed, Max. (S.P.M.): 1800 *Speed depends on thread, material and operation.
• Presser Foot Lift: By Hand- 5/16" (8 mm) / By Knee- 33/64" (13 mm)
• Needle Bar Stroke: 1-27/64" (36 mm)
• Stitch Length, Max: 2.8 s.p.i. (9 mm)
• Work Space: 18" x 4-1/4" (457 x 110 mm)
• Working Height Under Arm: 6” (152 mm) maximum
• Needles: 135 x 17 (x 2)
• Pre-wound Bobbin: U or S
