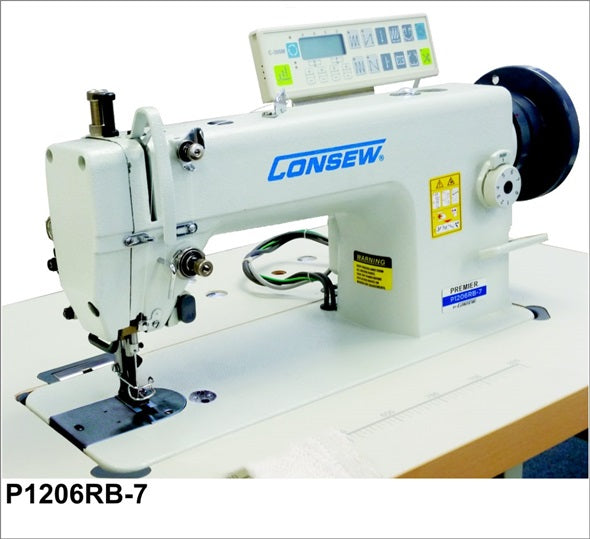

Consew P1206RB-7 Automatic Single Needle Walking Foot Sewing Machine
CALL US AT 1-800-228-0001 FOR PRICING AND LEAD TIME
FEATURES

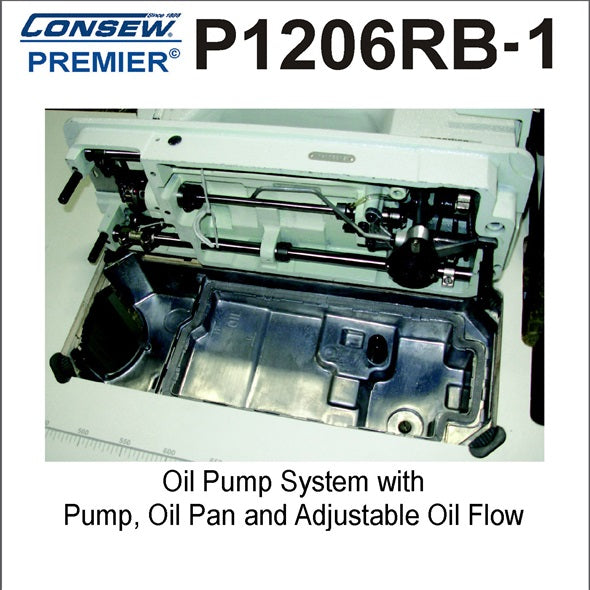

• Oil Pump System with Pump, Oil Pan and Adjustable Oil Flow
• Auto Foot Lift
• Auto Back Tack
• Needle Positioner
• Thread Trimmer
• Adjustable Oil Gauge
• Reverse
• Large Horizontal Axis Hook and Side-Loaded Bobbin
• Adjustable Upper Thread Tension
• Locking Stitch Regulator
• Built-In Bobbin Winder
SPECIFICATIONS
• Speed, Max. (S.P.M.): 3000 *Speed depends on thread, material and operation.
• Presser Foot Lift: By Hand- 5/16" (8 mm) / By Knee- 5/8" (16 mm)
• Needle Bar Stroke: 1-29/64" (37 mm)
• Stitch Length, Max: 3.6 s.p.i. (7 mm)
• Work Space: 10-1/4" x 4-3/4" (260 x 120 mm)
• Needle: 135 x 17
• Pre-wound Bobbin: M
APPLICATIONS
• For sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas and various coated and laminated products.
• Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travel-ware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, orthopedic appliances etc.
ADDITIONAL INFORMATION
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Auto Trimming, Backtack, Reverse |
| Stitch Type | 301 |
| Speed, Max (S.P.M.) | 3000 spm |
| Stitch Length | 3.6 s.p.i. (7 mm) |
| Needle | 135 x 17 |
| Stitch Type | 301 |
| Needle Bar Stroke | 1-29/64" (37 mm) |
| Work Surface | 10-1/4" x 4-3/4" (260 x 120 mm) |
| Foot Lift | by Hand 5/16" (8 mm) - by Knee 5/8" (16 mm) |
