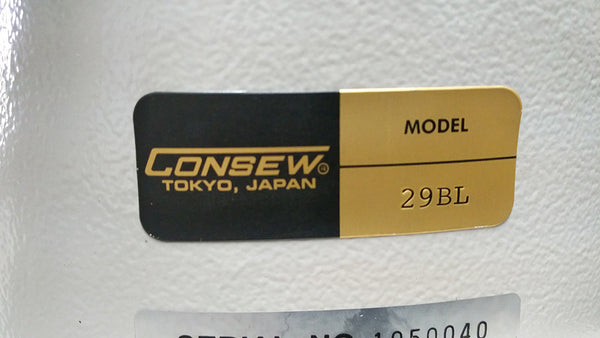

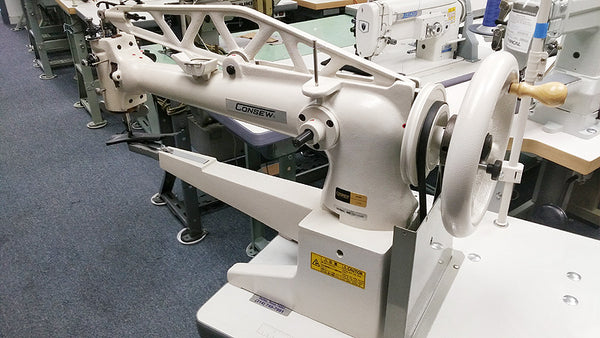

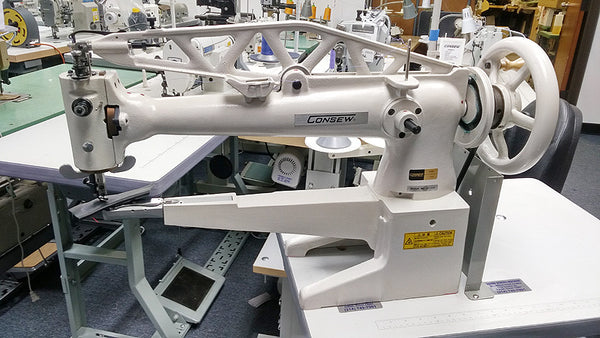

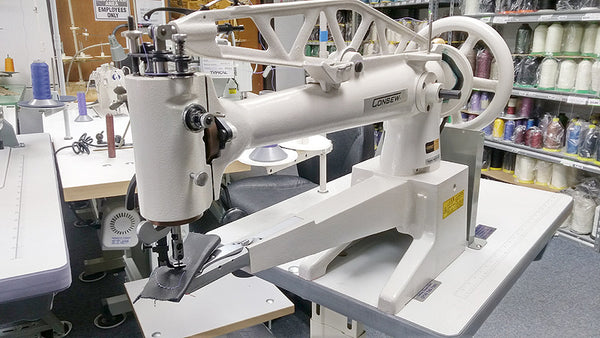

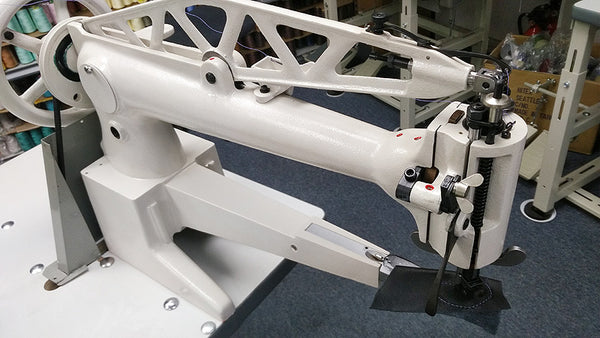

Consew 29 Shoe Patch Sewing Machine 29B - 29L - 29BL
Regular price
$0.00
Shipping calculated at checkout.
CALL US AT 1-800-228-0001 FOR PRICING AND LEAD TIME
APPLICATIONS

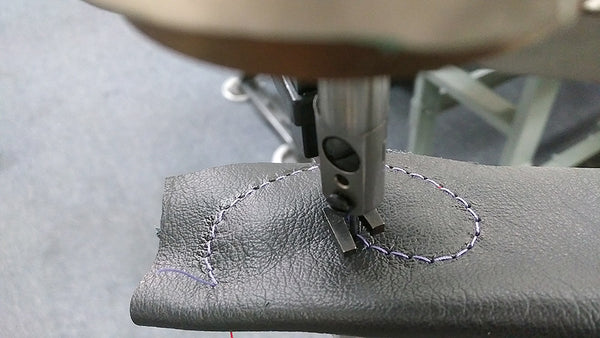

Repairing of leather materials and shoe uppers.
MODEL BREAKDOWN

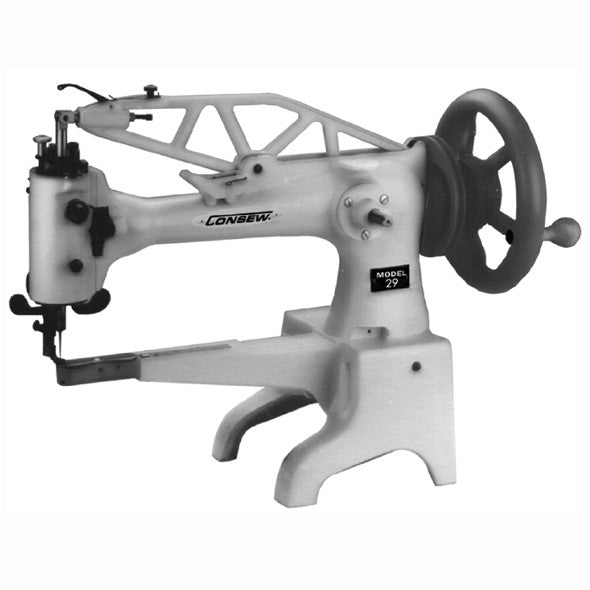

29 - 12" cylinder arm with small bobbin
29B - 12" cylinder arm with big bobbin

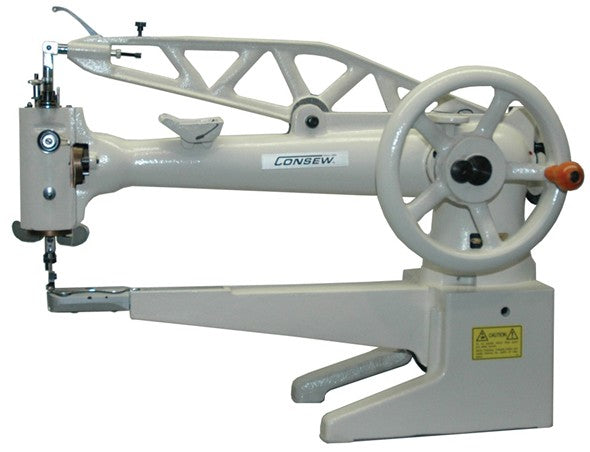

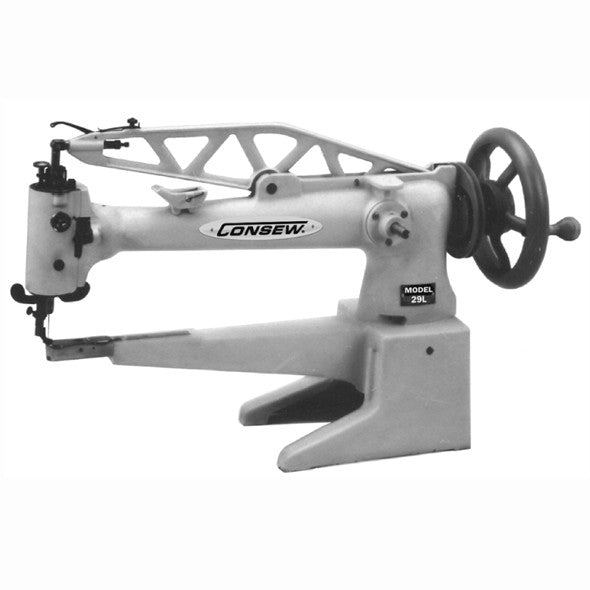

29L - 18" long cylinder arm with small bobbin

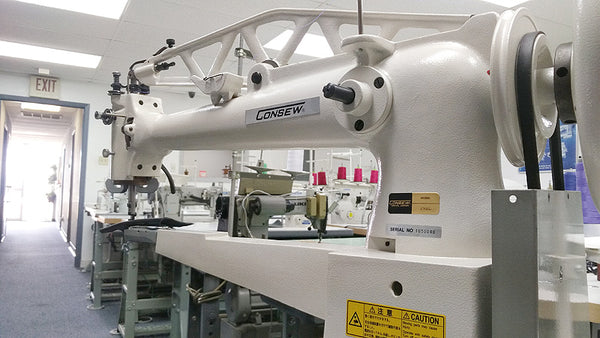

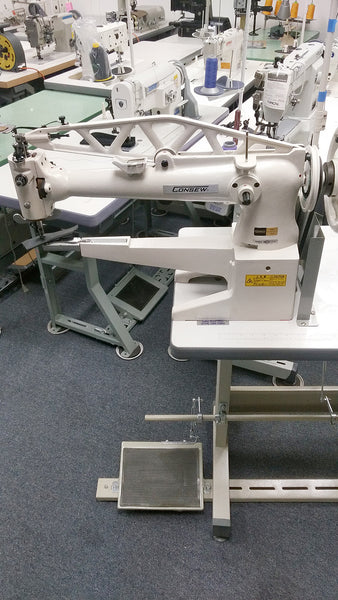

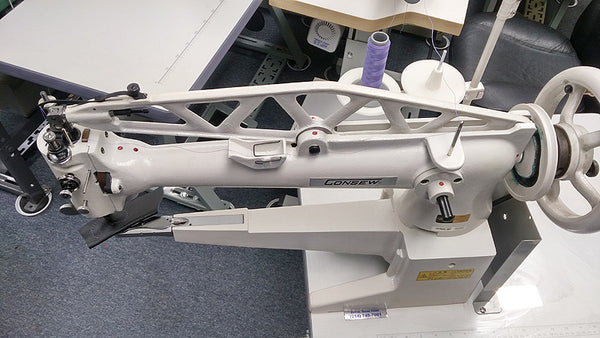

29BL - 18" long cylinder arm with big bobbin
FEATURES

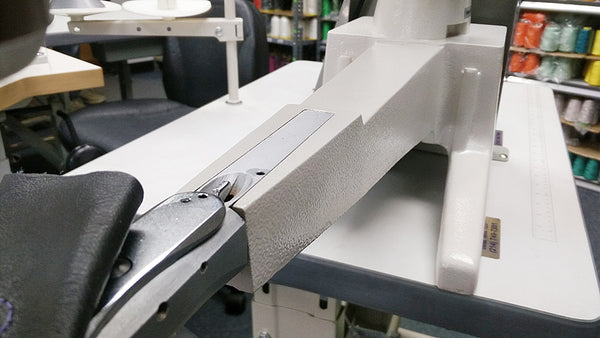

- Extra narrow cylinder bed
- Oscillating Shuttle
- Universal upper feed for stitching in any direction without turning work
- Hand-wheel can be mounted on front or right end of machine
- Wheel pulley "V" groove for motor drive
- Double ended needle plate with different size holes at back end to accommodate various size needles
- Adjustable thread take-up lever
- Adjustable presser foot pressure and thread tension

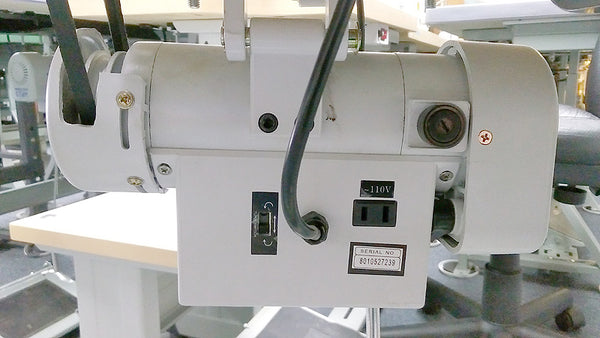

- Machine can be driven by foot treadle, hand crank or electric motor
Consew 29/29L SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Universal |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 500 |
| Clearance Under Presser Foot | 13/32 s.p.i. (10.5mm) |
| Stitch Length | 3.5 s.p.i. (1-7mm) |
| Hook Size | Small |
| Work Space | 12" (310mm) |
| Width of Cylinder Bed | 1" (25.4mm) |
| Needle | 29x3, Style 3741 |
| Depth of Cylinder Bed | 7/8" (22.2mm) |
| Net Weight | 62 lbs. (28kgs) |
| Gross Weight | 70.5 lbs. (32kgs) |
| Total Carton Size | 3.2 ft3 (.09cbm) |
