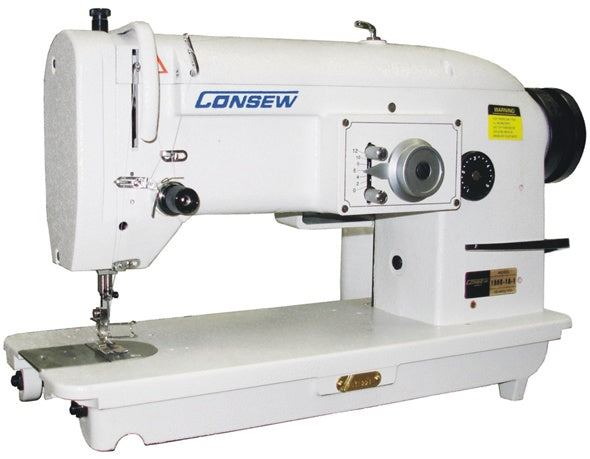

Consew 199R-1A-1 Zigzag Lockstitch Sewing Machine 199R-2A 199R-3A
Regular price
$0.00
Shipping calculated at checkout.
CALL US AT 1-800-228-0001 FOR PRICING AND LEAD TIME
APPLICATIONS
- Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials.
- Federal stitch 304
FEATURES
- Horizontal axis transverse rotary hook
- Maximum width of zig-zag: 3/8" (9.5mm)
- Straight stitcher when zig-zag is set to 'O' mm
- Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
- Locking zig-zag width regulator
- Reverse stitching
- Available models: 1A, 2A & 3A
-

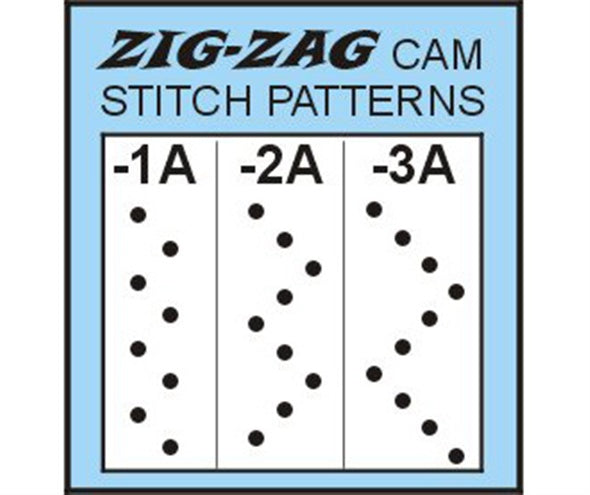

VERSIONS (see picture of stitch patterns):
199R-1A-1 • 1 Stitch Zig-Zag (304)
199R-2A-1 • 2 Stitch Zig-Zag (308)
199R-3A-1 • 3 Stitch Zig-Zag
ADDITIONAL INFORMATION
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Needle Feed |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) |
Zig-Zag 3000 Straight 3200 |
| Clearance Under Presser Foot | 15/64" (6mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 10" (258mm) |
| Needle | 16 x 95 |
| Bobbin |
Metal B75 Pre-wound L |
| Bed Size | 7 x 18 7/8" (178mm x 480mm) |
| Needle Bar Stroke | 1 11/32" (34mm) |
| Hook | B-70 |
| Zig-Zag Stitch Width | 3/8" (9.5mm) |
